Suport articulatie pivotanta corp cilindru
Tip produs: AT4
- accesoriu de prindere cilindru pneumatic standard ISO 15552
- pentru cilindrii cu diametru piston : Ø32 mm ... Ø125 mm
Set suport articulatie pivotanta tip AT4

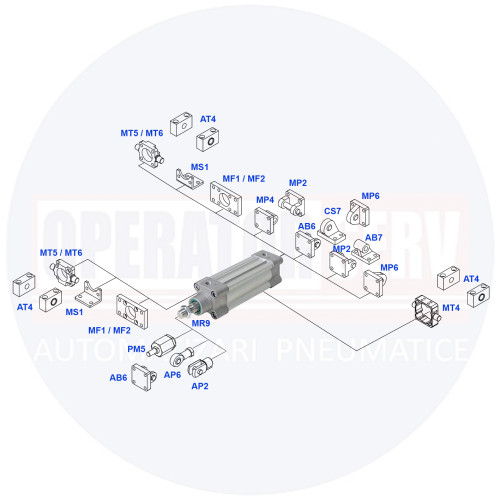

Se utilizeaza in combinatie cu articulatie pivotanta tip MT4, sau MT5 / MT6

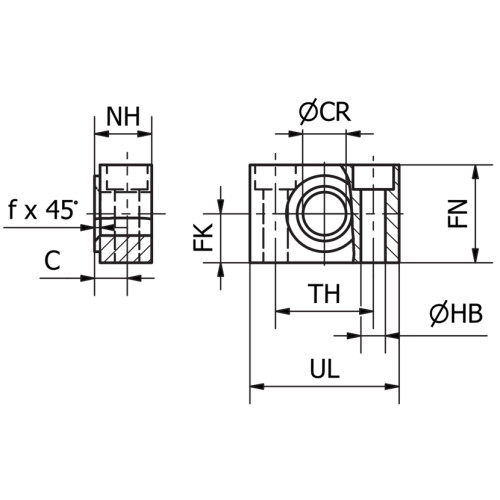

| Cod | Diametru piston mm | UL mm | NH mm | TH mm | C mm | ØCR mm | ØHB mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 9301054261 | Ø32 | 46 | 18 | 32 | 10,5 | 12 | 6,6 |
|
Adauga |
| 9301054262 | Ø40 | 55 | 21 | 36 | 12 | 16 | 9 |
|
Adauga |
| 9301054262 | Ø50 | 55 | 21 | 336 | 12 | 16 | 9 |
|
Adauga |
| 9301054264 | Ø63 | 65 | 23 | 42 | 13 | 20 | 11 |
|
Adauga |
| 9301054264 | Ø80 | 65 | 23 | 42 | 13 | 20 | 11 |
|
Adauga |
| 9301054266 | Ø100 | 75 | 28,5 | 50 | 16 | 25 | 14 |
|
Adauga |
| 9301054266 | Ø125 | 75 | 28,5 | 50 | 16 | 25 | 14 |
|
Adauga |
