Cilindru pneumatic ISO 15552, Ø100, seria P1F
Tip produs: P1F Ø100
- dubla actionare, magnet pentru senzori
- amortizare reglabila la capat de cursa
- diametru piston: Ø100 mm
- standard: ISO 15552
Cilindri pneumatici P1F, dubla actionare cu amortizare reglabila la capat de cursa si magnet pentru senzori.
- dubla actionare
- amortizare reglabila la capat de cursa
- magnet pentru senzori
- diametru piston: Ø100 mm
- standard: ISO 15552,
variante constructive disponibile:
- gama standard de temperatura: -20⁰C ... +80⁰C
- varianta ATEX: -20⁰C ... +60⁰C
- pentru temperaturi scazute: -40⁰C ... +80⁰
- pentru temperaturi inalte: -10⁰C ... +150⁰C
- pentru medii agresive (etansare tija FKM): -10⁰C ... +80⁰C
- pentru medii agresive (metal scraper): -30⁰C ... +80⁰C

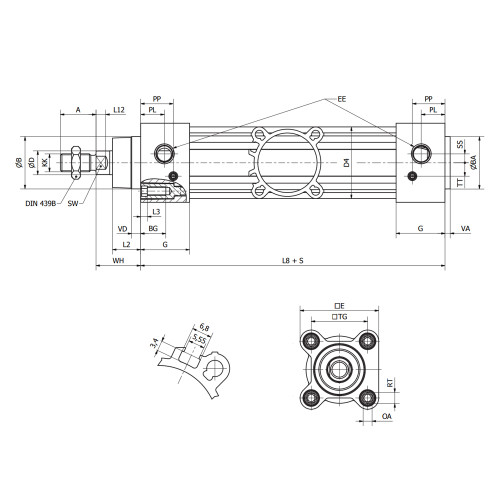

| Cod | Diametru piston mm | Cursa mm | Racord aer (EE) | Diametru tija (ØD) mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|
| P1F-S100MS-0025-0000 | 100 | 25 | G1/2 | 25 |
|
Adauga |
| P1F-S100MS-0030-0000 | 100 | 30 | G1/2 | 25 |
|
Adauga |
| P1F-S100MS-0040-0000 | 100 | 40 | G1/2 | 25 |
|
Adauga |
| P1F-S100MS-0050-0000 | 100 | 50 | G1/2 | 25 |
|
Adauga |
| P1F-S100MS-0080-0000 | 100 | 80 | G1/2 | 25 |
|
Adauga |
| P1F-S100MS-0100-0000 | 100 | 100 | G1/2 | 25 |
|
Adauga |
| P1F-S100MS-0125-0000 | 100 | 125 | G1/2 | 25 |
|
Adauga |
| P1F-S100MS-0160-0000 | 100 | 160 | G1/2 | 25 |
|
Adauga |
| P1F-S100MS-0200-0000 | 100 | 200 | G1/2 | 25 |
|
Adauga |
| P1F-S100MS-0250-0000 | 100 | 250 | G1/2 | 25 |
|
Adauga |
| P1F-S100MS-0320-0000 | 100 | 320 | G1/2 | 25 |
|
Adauga |
| P1F-S100MS-0400-0000 | 100 | 400 | G1/2 | 25 |
|
Adauga |
| P1F-S100MS-0500-0000 | 100 | 500 | G1/2 | 25 |
|
Adauga |
