Jug articulatie pivotanta corp cilindru

Tip produs: MT4

- accesoriu de prindere cilindru pneumatic standard ISO 15552
- pentru cilindri cu diametru piston : Ø32 mm ... Ø125 mm

Flansa intermediara tip MT4 pentru montaj corp (profil aluminiu) cilindru pneumatic ISO 15552, seria P1F

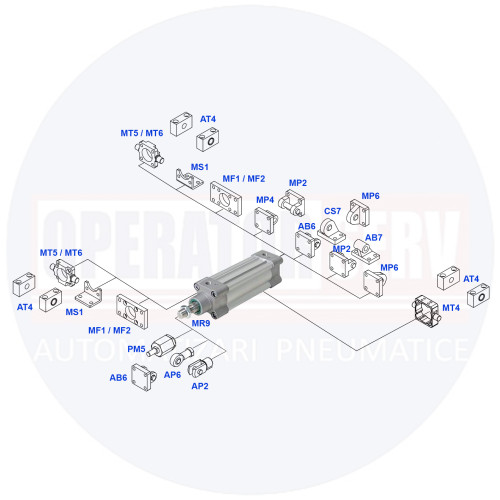

Se utilizeaza in combinatie cu un set suport articulatie pivotanta tip AT4

Selectati codul produsului:

PART NUMBER:

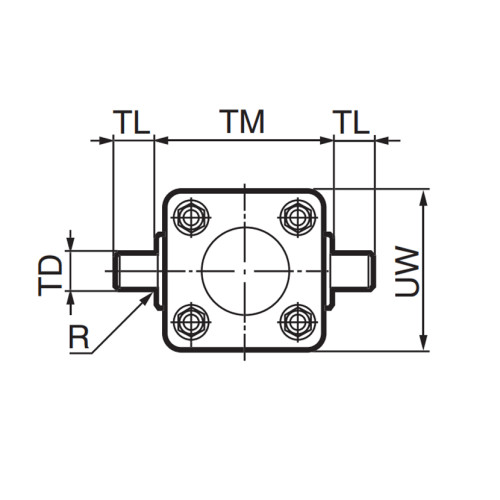

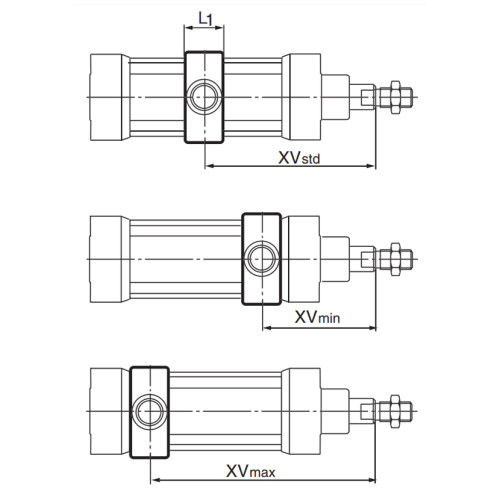

Cod	Diametru piston mm	TL mm	TM mm	ØTD mm	XVstd mm	TK mm	UW mm	XVmin mm	XVmax mm	Info	Cerere oferta
P1F-4KMY	Ø32	12	50	12	73	18	52	65	81 + stroke	P1F-S/K	Adauga
P1F-4LMY	Ø40	16	63	16	83	20	60	74	91 + stroke	P1F-S/K	Adauga
P1F-4MMY	Ø50	16	75	16	90	20	71	82	98 + stroke	P1F-S/K	Adauga
P1F-4NMY	Ø63	20	90	20	98	26	84	91	104 + stroke	P1F-S/K	Adauga
P1F-4PMY	Ø80	20	110	20	110	26	105	100	120 + stroke	P1F-S/K	Adauga
P1F-4QMY	Ø100	25	132	25	120	32	129	113	127 + stroke	P1F-S/K	Adauga
P1F-4RMY	Ø125	25	160	25	145	33	154	134	156 + stroke	P1F-S/K	Adauga
