Cupla rapida tata, seria 48 termoplastic, filet exterior
Seria 48 termoplastic, Diametru nominal DN 7
double shut-off
Presiune maxima de lucru: 10 bar / 8 bar
Temperatura: -20⁰C ... +80⁰C / +120⁰C
Cupla rapida tata, seria 48 termoplastic, filet exterior si supapa pentru inchidere dubla.
Variante materiale termoplastice:
Termoplastic POM
Presiune de lucru: maxim 10 bar (POM, la 20°C)
Material:
• Cupla mama: POM (culoare standard negru)
• Cupla tata: POM (culoare standard negru)
• Etansari: NBR
Temperatura: -20°C ... +80°C (POM)
Debit de aer:
• varianta inchidere simpla: 1100 l/min.
• varianta inchidere dubla: 770 l/min.
(presiune 6 bar, cadere de presiune 0.5 bar)
Debit de apa:
• varianta inchidere simpla: 17 l/min.
• varianta inchidere dubla: 12 l/min.
(cadere de presiune 0.5 bar)

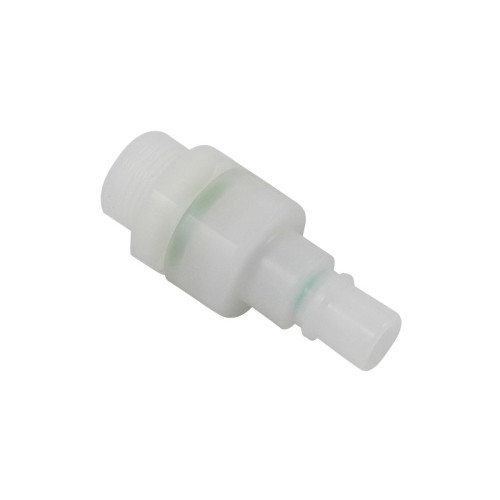

Termoplastic PVDF
cu arc metalic
Presiune de lucru: maxim 8 bar (PVDF, cu arc metalic)
Material:
• Cupla mama: PVDF (culoare standard alb)
• Cupla tata: PVDF (culoare standard alb)
• Etansari: FKM
Temperatura: -20°C ... +120°C (PVDF)
Debit de aer:
• varianta inchidere simpla: 1100 l/min.
• varianta inchidere dubla: 770 l/min.
(presiune 6 bar, cadere de presiune 0.5 bar)
Debit de apa:
• varianta inchidere simpla: 17 l/min.
• varianta inchidere dubla: 12 l/min.
(cadere de presiune 0.5 bar)
Termoplastic PVDF cu arc PEEK
Presiune de lucru: 1 ... 8 bar (PVDF, cu arc PEEK)
Material:
• Cupla mama: PVDF (culoare standard alb), arc PEEK
• Cupla tata: PVDF (culoare standard alb), arc PEEK
• Etansari: FKM
Temperatura: -20°C ... +120°C (PVDF)
Debit de aer:
• varianta inchidere dubla: 770 l/min.
(presiune 6 bar, cadere de presiune 0.5 bar)
Debit de apa:
• varianta inchidere dubla: 12 l/min.
(cadere de presiune 0.5 bar)

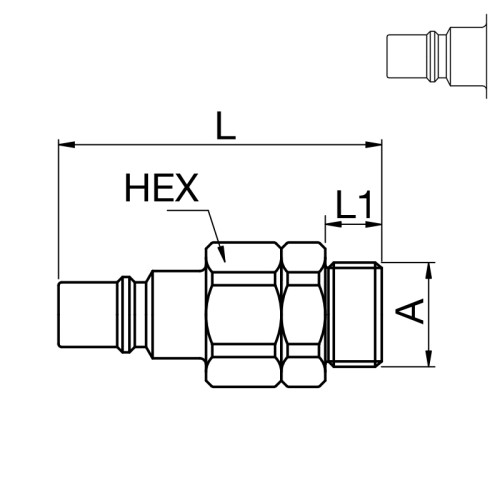

| Cod | A | HEX mm | L mm | L1 mm | Manson | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 48SBAW13DPX | G1/4 | 21 | 55 | 9 | standard | POM |
|
Adauga |
| 48SBAW13FVX | G1/4 | 21 | 55 | 9 | standard | CHEM |
|
Adauga |
| 48SBAW13FVP | G1/4 | 21 | 55 | 9 | standard | CHEM+ |
|
Adauga |

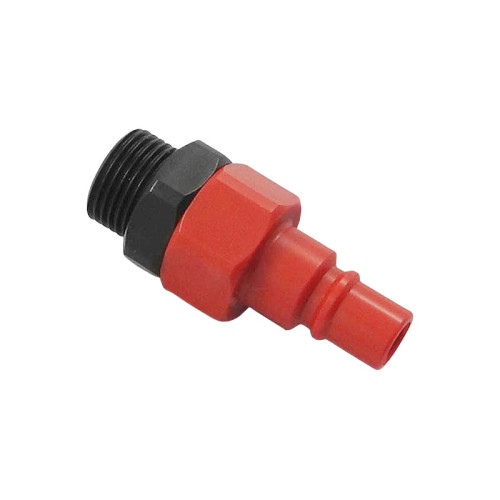

| 48SBAW13DPXR | G1/4 | 21 | 55 | 9 | rosu | POM |
|
Adauga |
| 48SBAW13FVXR | G1/4 | 21 | 55 | 9 | rosu | CHEM |
|
Adauga |
| 48SBAW13FVPR | G1/4 | 21 | 55 | 9 | rosu | CHEM+ |
|
Adauga |

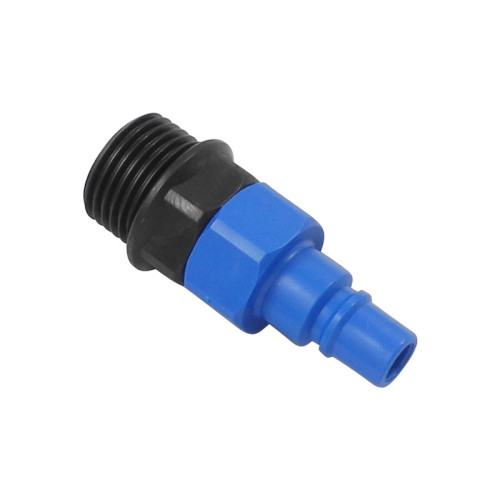

| 48SBAW13DPXB | G1/4 | 21 | 55 | 9 | albastru | POM |
|
Adauga |
| 48SBAW13FVXB | G1/4 | 21 | 55 | 9 | albastru | CHEM |
|
Adauga |
| 48SBAW13FVPB | G1/4 | 21 | 55 | 9 | albastru | CHEM+ |
|
Adauga |
| 48SBAW17DPX | G3/8 | 21 | 51,5 | 9 | standard | POM |
|
Adauga |
| 48SBAW17FVX | G3/8 | 21 | 51,5 | 9 | standard | CHEM |
|
Adauga |
| 48SBAW17FVP | G3/8 | 21 | 51,5 | 9 | standard | CHEM+ |
|
Adauga |
| 48SBAW17DPXR | G3/8 | 21 | 51,5 | 9 | rosu | POM |
|
Adauga |
| 48SBAW17FVXR | G3/8 | 21 | 51,5 | 9 | rosu | CHEM |
|
Adauga |
| 48SBAW17FVPR | G3/8 | 21 | 51,5 | 9 | rosu | CHEM+ |
|
Adauga |
| 48SBAW17DPXB | G3/8 | 21 | 51,5 | 9 | albastru | POM |
|
Adauga |
| 48SBAW17FVXB | G3/8 | 21 | 51,5 | 9 | albastru | CHEM |
|
Adauga |
| 48SBAW17FVPB | G3/8 | 21 | 51,5 | 9 | albastru | CHEM+ |
|
Adauga |
| 48SBAW21DPX | G1/2 | 21 | 58 | 12 | standard | POM |
|
Adauga |
| 48SBAW21FVX | G1/2 | 21 | 58 | 12 | standard | CHEM |
|
Adauga |
| 48SBAW21FVP | G1/2 | 21 | 58 | 12 | standard | CHEM+ |
|
Adauga |
| 48SBAW21DPXR | G1/2 | 21 | 58 | 12 | rosu | POM |
|
Adauga |
| 48SBAW21FVXR | G1/2 | 21 | 58 | 12 | rosu | CHEM |
|
Adauga |
| 48SBAW21FVPR | G1/2 | 21 | 58 | 12 | rosu | CHEM+ |
|
Adauga |
| 48SBAW21DPXB | G1/2 | 21 | 58 | 12 | albastru | POM |
|
Adauga |
| 48SBAW21FVXB | G1/2 | 21 | 58 | 12 | albastru | CHEM |
|
Adauga |
| 48SBAW21FVPB | G1/2 | 21 | 58 | 12 | albastru | CHEM+ |
|
Adauga |
