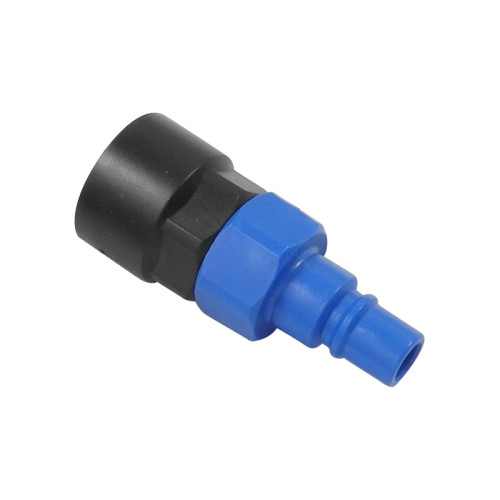

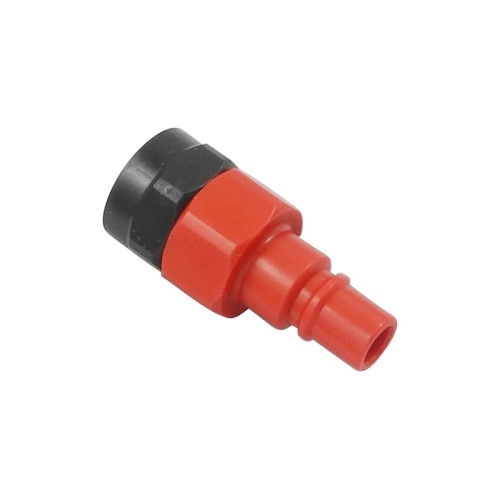

Cupla rapida tata, seria 48 termoplastic, filet interior
Seria 48 termoplastic, Diametru nominal DN 7
double shut-off
Presiune maxima de lucru: 10 bar / 8 bar
Temperatura: -20⁰C ... +80⁰C / +120⁰C
Cupla rapida tata, seria 48 termoplastic, filet interior si supapa pentru inchidere dubla.
Variante materiale termoplastice:
Termoplastic POM
Presiune de lucru: maxim 10 bar (POM, la 20°C)
Material:
• Cupla mama: POM (culoare standard negru)
• Cupla tata: POM (culoare standard negru)
• Etansari: NBR
Temperatura: -20°C ... +80°C (POM)
Debit de aer:
• varianta inchidere simpla: 1100 l/min.
• varianta inchidere dubla: 770 l/min.
(presiune 6 bar, cadere de presiune 0.5 bar)
Debit de apa:
• varianta inchidere simpla: 17 l/min.
• varianta inchidere dubla: 12 l/min.
(cadere de presiune 0.5 bar)

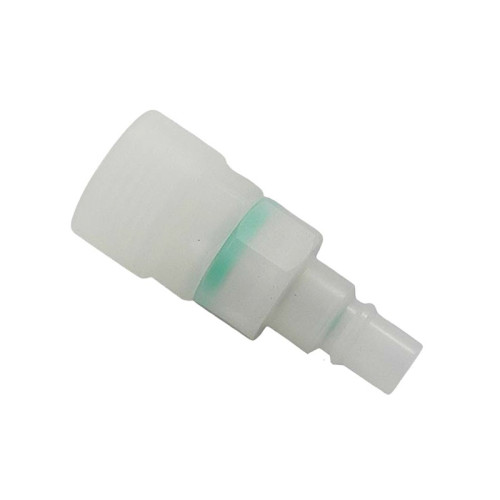

Termoplastic PVDF
cu arc metalic
Presiune de lucru: maxim 8 bar (PVDF, cu arc metalic)
Material:
• Cupla mama: PVDF (culoare standard alb)
• Cupla tata: PVDF (culoare standard alb)
• Etansari: FKM
Temperatura: -20°C ... +120°C (PVDF)
Debit de aer:
• varianta inchidere simpla: 1100 l/min.
• varianta inchidere dubla: 770 l/min.
(presiune 6 bar, cadere de presiune 0.5 bar)
Debit de apa:
• varianta inchidere simpla: 17 l/min.
• varianta inchidere dubla: 12 l/min.
(cadere de presiune 0.5 bar)

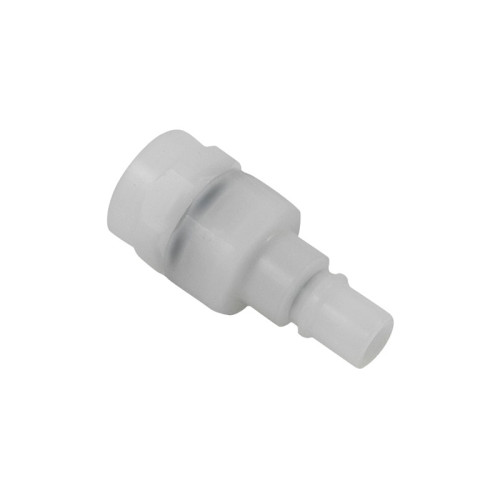

Termoplastic PVDF cu arc PEEK
Presiune de lucru: 1 ... 8 bar (PVDF, cu arc PEEK)
Material:
• Cupla mama: PVDF (culoare standard alb), arc PEEK
• Cupla tata: PVDF (culoare standard alb), arc PEEK
• Etansari: FKM
Temperatura: -20°C ... +120°C (PVDF)
Debit de aer:
• varianta inchidere dubla: 770 l/min.
(presiune 6 bar, cadere de presiune 0.5 bar)
Debit de apa:
• varianta inchidere dubla: 12 l/min.
(cadere de presiune 0.5 bar)

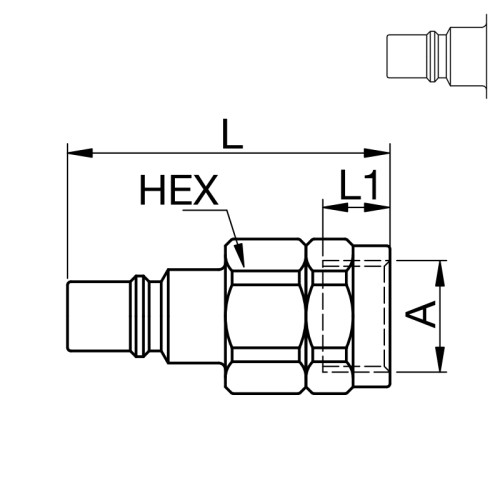

| Cod | A | HEX mm | L mm | L1 mm | Manson | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 48SBIW13DPX | G1/4 | 21 | 48 | 10 | standard | POM |
|
Adauga |
| 48SBIW13FVX | G1/4 | 21 | 48 | 10 | standard | CHEM |
|
Adauga |
| 48SBIW13FVP | G1/4 | 21 | 48 | 10 | standard | CHEM+ |
|
Adauga |
| 48SBIW13DPXR | G1/4 | 21 | 48 | 10 | rosu | POM |
|
Adauga |
| 48SBIW13FVXR | G1/4 | 21 | 48 | 10 | rosu | CHEM |
|
Adauga |
| 48SBIW13FVPR | G1/4 | 21 | 48 | 10 | rosu | CHEM+ |
|
Adauga |
| 48SBIW13DPXB | G1/4 | 21 | 48 | 10 | albastru | POM |
|
Adauga |
| 48SBIW13FVXB | G1/4 | 21 | 48 | 10 | albastru | CHEM |
|
Adauga |
| 48SBIW13FVPB | G1/4 | 21 | 48 | 10 | albastru | CHEM+ |
|
Adauga |
| 48SBIW17DPX | G3/8 | 21 | 48 | 10 | standard | POM |
|
Adauga |
| 48SBIW17FVX | G3/8 | 21 | 48 | 10 | standard | CHEM |
|
Adauga |
| 48SBIW17FVP | G3/8 | 21 | 48 | 10 | standard | CHEM+ |
|
Adauga |
| 48SBIW17DPXR | G3/8 | 21 | 48 | 10 | rosu | POM |
|
Adauga |
| 48SBIW17FVXR | G3/8 | 21 | 48 | 10 | rosu | CHEM |
|
Adauga |
| 48SBIW17FVPR | G3/8 | 21 | 48 | 10 | rosu | CHEM+ |
|
Adauga |
| 48SBIW17DPXB | G3/8 | 21 | 48 | 10 | albastru | POM |
|
Adauga |
| 48SBIW17FVXB | G3/8 | 21 | 48 | 10 | albastru | CHEM |
|
Adauga |
| 48SBIW17FVPB | G3/8 | 21 | 48 | 10 | albastru | CHEM+ |
|
Adauga |
| 48SBIW21DPX | G1/2 | 21 | 59 | 13 | standard | POM |
|
Adauga |
| 48SBIW21FVX | G1/2 | 21 | 59 | 13 | standard | CHEM |
|
Adauga |
| 48SBIW21FVP | G1/2 | 21 | 59 | 13 | standard | CHEM+ |
|
Adauga |
| 48SBIW21DPXR | G1/2 | 21 | 59 | 13 | rosu | POM |
|
Adauga |
| 48SBIW21FVXR | G1/2 | 21 | 59 | 13 | rosu | CHEM |
|
Adauga |
| 48SBIW21FVPR | G1/2 | 21 | 59 | 13 | rosu | CHEM+ |
|
Adauga |
| 48SBIW21DPXB | G1/2 | 21 | 59 | 13 | albastru | POM |
|
Adauga |
| 48SBIW21FVXB | G1/2 | 21 | 59 | 13 | albastru | CHEM |
|
Adauga |
| 48SBIW21FVPB | G1/2 | 21 | 59 | 13 | albastru | CHEM+ |
|
Adauga |
