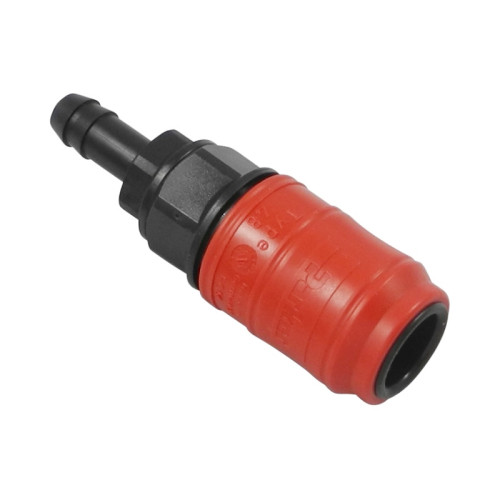

Cupla rapida mama, seria 48 termoplastic, cu stut
Seria 48 termoplastic, Diametru nominal DN 7
double shut-off
Presiune maxima de lucru: 10 bar / 8 bar
Temperatura: -20⁰C ... +80⁰C / +120⁰C
Cupla rapida mama, seria 48 termoplastic, cu stut pentru furtun si supapa pentru inchidere dubla.
Variante materiale termoplastice:
Termoplastic POM
Presiune de lucru: maxim 10 bar (POM, la 20°C)
Material:
• Cupla mama: POM (culoare standard negru)
• Cupla tata: POM (culoare standard negru)
• Etansari: NBR
Temperatura: -20°C ... +80°C (POM)
Debit de aer:
• varianta inchidere simpla: 1100 l/min.
• varianta inchidere dubla: 770 l/min.
(presiune 6 bar, cadere de presiune 0.5 bar)
Debit de apa:
• varianta inchidere simpla: 17 l/min.
• varianta inchidere dubla: 12 l/min.
(cadere de presiune 0.5 bar)

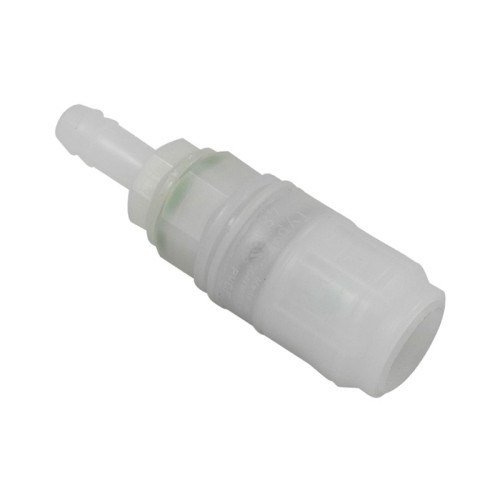

Termoplastic PVDF
cu arc metalic
Presiune de lucru: maxim 8 bar (PVDF, cu arc metalic)
Material:
• Cupla mama: PVDF (culoare standard alb)
• Cupla tata: PVDF (culoare standard alb)
• Etansari: FKM
Temperatura: -20°C ... +120°C (PVDF)
Debit de aer:
• varianta inchidere simpla: 1100 l/min.
• varianta inchidere dubla: 770 l/min.
(presiune 6 bar, cadere de presiune 0.5 bar)
Debit de apa:
• varianta inchidere simpla: 17 l/min.
• varianta inchidere dubla: 12 l/min.
(cadere de presiune 0.5 bar)

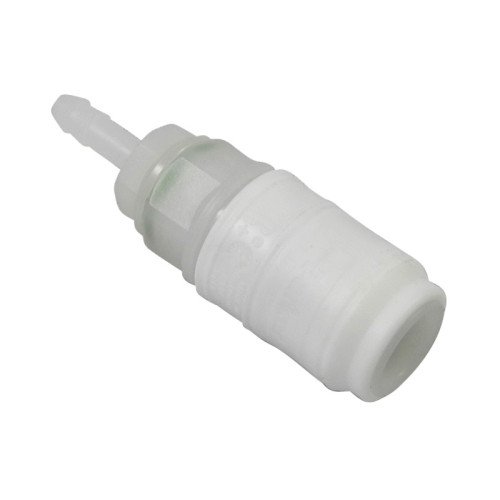

Termoplastic PVDF cu arc PEEK
Presiune de lucru: 1 ... 8 bar (PVDF, cu arc PEEK)
Material:
• Cupla mama: PVDF (culoare standard alb), arc PEEK
• Cupla tata: PVDF (culoare standard alb), arc PEEK
• Etansari: FKM
Temperatura: -20°C ... +120°C (PVDF)
Debit de aer:
• varianta inchidere dubla: 770 l/min.
(presiune 6 bar, cadere de presiune 0.5 bar)
Debit de apa:
• varianta inchidere dubla: 12 l/min.
(cadere de presiune 0.5 bar)

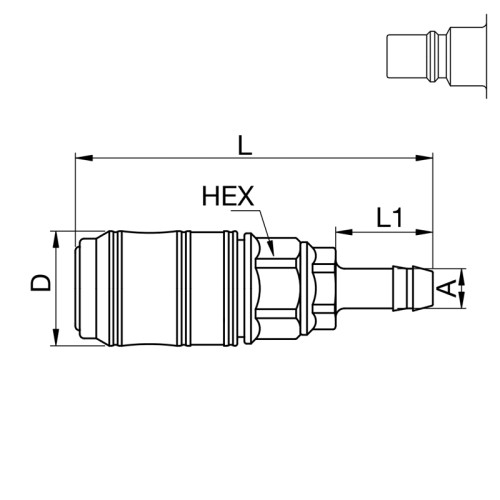

| Cod | A | HEX mm | L mm | L1 mm | ØD mm | Manson | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 48KBTF06DPX | 6 | 21 | 81 | 22 | 26 | standard | POM |
|
Adauga |
| 48KBTF06FVX | 6 | 21 | 81 | 22 | 26 | standard | CHEM |
|
Adauga |
| 48KBTF06FVP | 6 | 21 | 81 | 22 | 26 | standard | CHEM+ |
|
Adauga |
| 48KBTF06DPXR | 6 | 21 | 81 | 22 | 26 | rosu | POM |
|
Adauga |
| 48KBTF06FVXR | 6 | 21 | 81 | 22 | 26 | rosu | CHEM |
|
Adauga |
| 48KBTF06FVPR | 6 | 21 | 81 | 22 | 26 | rosu | CHEM+ |
|
Adauga |
| 48KBTF06DPXB | 6 | 21 | 81 | 22 | 26 | albastru | POM |
|
Adauga |
| 48KBTF06FVXB | 6 | 21 | 81 | 22 | 26 | albastru | CHEM |
|
Adauga |
| 48KBTF06FVPB | 6 | 21 | 81 | 22 | 26 | albastru | CHEM+ |
|
Adauga |
| 48KBTF09DPX | 9 | 21 | 81 | 22 | 26 | standard | POM |
|
Adauga |
| 48KBTF09FVX | 9 | 21 | 81 | 22 | 26 | standard | CHEM |
|
Adauga |
| 48KBTF09FVP | 9 | 21 | 81 | 22 | 26 | standard | CHEM+ |
|
Adauga |
| 48KBTF09DPXR | 9 | 21 | 81 | 22 | 26 | rosu | POM |
|
Adauga |
| 48KBTF09FVXR | 9 | 21 | 81 | 22 | 26 | rosu | CHEM |
|
Adauga |
| 48KBTF09FVPR | 9 | 21 | 81 | 22 | 26 | rosu | CHEM+ |
|
Adauga |
| 48KBTF09DPXB | 9 | 21 | 81 | 22 | 26 | albastru | POM |
|
Adauga |
| 48KBTF09FVXB | 9 | 21 | 81 | 22 | 26 | albastru | CHEM |
|
Adauga |
| 48KBTF09FVPB | 9 | 21 | 81 | 22 | 26 | albastru | CHEM+ |
|
Adauga |
| 48KBTF13DPX | 13 | 21 | 84 | 25 | 26 | standard | POM |
|
Adauga |
| 48KBTF13FVX | 13 | 21 | 84 | 25 | 26 | standard | CHEM |
|
Adauga |
| 48KBTF13FVP | 13 | 21 | 84 | 25 | 26 | standard | CHEM+ |
|
Adauga |
| 48KBTF13DPXR | 13 | 21 | 84 | 25 | 26 | rosu | POM |
|
Adauga |
| 48KBTF13FVXR | 13 | 21 | 84 | 25 | 26 | rosu | CHEM |
|
Adauga |
| 48KBTF13FVPR | 13 | 21 | 84 | 25 | 26 | rosu | CHEM+ |
|
Adauga |
| 48KBTF13DPXB | 13 | 21 | 84 | 25 | 26 | albastru | POM |
|
Adauga |
| 48KBTF13FVXB | 13 | 21 | 84 | 25 | 26 | albastru | CHEM |
|
Adauga |
| 48KBTF13FVPB | 13 | 21 | 84 | 25 | 26 | albastru | CHEM+ |
|
Adauga |
