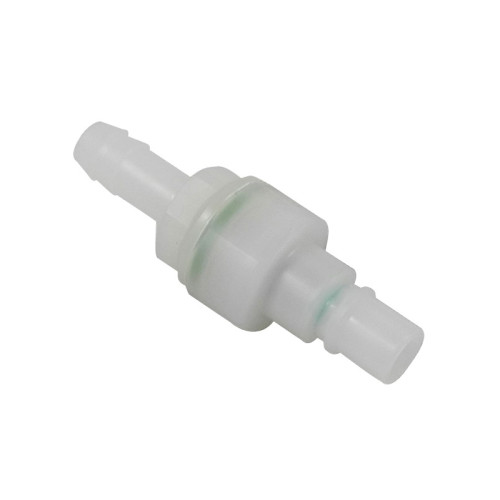

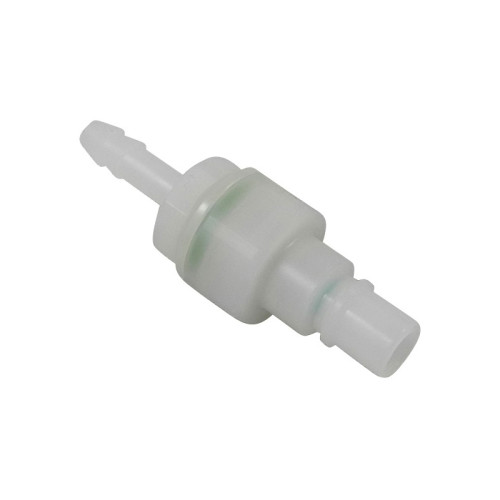

Cupla rapida tata, seria 48 termoplastic, cu stut
Seria 48 termoplastic, Diametru nominal DN 7
double shut-off
Presiune maxima de lucru: 10 bar / 8 bar
Temperatura: -20⁰C ... +80⁰C / +120⁰C
Cupla rapida tata, seria 48 termoplastic, cu stut pentru furtun si supapa pentru inchidere dubla.
Variante materiale termoplastice:
Termoplastic POM
Presiune de lucru: maxim 10 bar (POM, la 20°C)
Material:
• Cupla mama: POM (culoare standard negru)
• Cupla tata: POM (culoare standard negru)
• Etansari: NBR
Temperatura: -20°C ... +80°C (POM)
Debit de aer:
• varianta inchidere simpla: 1100 l/min.
• varianta inchidere dubla: 770 l/min.
(presiune 6 bar, cadere de presiune 0.5 bar)
Debit de apa:
• varianta inchidere simpla: 17 l/min.
• varianta inchidere dubla: 12 l/min.
(cadere de presiune 0.5 bar)
Termoplastic PVDF
cu arc metalic
Presiune de lucru: maxim 8 bar (PVDF, cu arc metalic)
Material:
• Cupla mama: PVDF (culoare standard alb)
• Cupla tata: PVDF (culoare standard alb)
• Etansari: FKM
Temperatura: -20°C ... +120°C (PVDF)
Debit de aer:
• varianta inchidere simpla: 1100 l/min.
• varianta inchidere dubla: 770 l/min.
(presiune 6 bar, cadere de presiune 0.5 bar)
Debit de apa:
• varianta inchidere simpla: 17 l/min.
• varianta inchidere dubla: 12 l/min.
(cadere de presiune 0.5 bar)
Termoplastic PVDF cu arc PEEK
Presiune de lucru: 1 ... 8 bar (PVDF, cu arc PEEK)
Material:
• Cupla mama: PVDF (culoare standard alb), arc PEEK
• Cupla tata: PVDF (culoare standard alb), arc PEEK
• Etansari: FKM
Temperatura: -20°C ... +120°C (PVDF)
Debit de aer:
• varianta inchidere dubla: 770 l/min.
(presiune 6 bar, cadere de presiune 0.5 bar)
Debit de apa:
• varianta inchidere dubla: 12 l/min.
(cadere de presiune 0.5 bar)

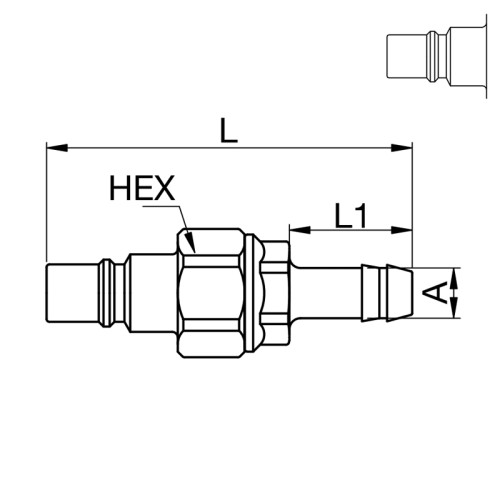

| Cod | A | HEX mm | L mm | L1 mm | Manson | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 48SBTF06DPX | 6 | 21 | 48 | 10 | standard | POM |
|
Adauga |
| 48SBTF06FVX | 6 | 21 | 48 | 10 | standard | CHEM |
|
Adauga |
| 48SBTF06FVP | 6 | 21 | 48 | 10 | standard | CHEM+ |
|
Adauga |
| 48SBTF06DPXR | 6 | 21 | 48 | 10 | rosu | POM |
|
Adauga |
| 48SBTF06FVXR | 6 | 21 | 48 | 10 | rosu | CHEM |
|
Adauga |
| 48SBTF06FVPR | 6 | 21 | 48 | 10 | rosu | CHEM+ |
|
Adauga |
| 48SBTF06DPXB | 6 | 21 | 48 | 10 | albastru | POM |
|
Adauga |
| 48SBTF06FVXB | 6 | 21 | 48 | 10 | albastru | CHEM |
|
Adauga |
| 48SBTF06FVPB | 6 | 21 | 48 | 10 | albastru | CHEM+ |
|
Adauga |
| 48SBTF09DPX | 9 | 21 | 48 | 10 | standard | POM |
|
Adauga |
| 48SBTF09FVX | 9 | 21 | 48 | 10 | standard | CHEM |
|
Adauga |
| 48SBTF09FVP | 9 | 21 | 48 | 10 | standard | CHEM+ |
|
Adauga |
| 48SBTF09DPXR | 9 | 21 | 48 | 10 | rosu | POM |
|
Adauga |
| 48SBTF09FVXR | 9 | 21 | 48 | 10 | rosu | CHEM |
|
Adauga |
| 48SBTF09FVPR | 9 | 21 | 48 | 10 | rosu | CHEM+ |
|
Adauga |
| 48SBTF09DPXB | 9 | 21 | 48 | 10 | albastru | POM |
|
Adauga |
| 48SBTF09FVXB | 9 | 21 | 48 | 10 | albastru | CHEM |
|
Adauga |
| 48SBTF09FVPB | 9 | 21 | 48 | 10 | albastru | CHEM+ |
|
Adauga |
| 48SBTF13DPX | 13 | 21 | 59 | 13 | standard | POM |
|
Adauga |
| 48SBTF13FVX | 13 | 21 | 59 | 13 | standard | CHEM |
|
Adauga |
| 48SBTF13FVP | 13 | 21 | 59 | 13 | standard | CHEM+ |
|
Adauga |
| 48SBTF13DPXR | 13 | 21 | 59 | 13 | rosu | POM |
|
Adauga |
| 48SBTF13FVXR | 13 | 21 | 59 | 13 | rosu | CHEM |
|
Adauga |
| 48SBTF13FVPR | 13 | 21 | 59 | 13 | rosu | CHEM+ |
|
Adauga |
| 48SBTF13DPXB | 13 | 21 | 59 | 13 | albastru | POM |
|
Adauga |
| 48SBTF13FVXB | 13 | 21 | 59 | 13 | albastru | CHEM |
|
Adauga |
| 48SBTF13FVPB | 13 | 21 | 59 | 13 | albastru | CHEM+ |
|
Adauga |
