Cupla rapida mama, cu stut pentru furtun
Tip produs: 9123
Presiune maxima de lucru: 20 bar
Temperatura: -20⁰C ... +100⁰C
*** Codurile cuplelor LEGRIS au fost inlocuite cu coduri RECTUS
- Presiune maxima de lucru : 20 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : +100 ⁰C
- Corp : alama nichelata
- Garnituri : NBR (cauciuc)
- Arc : otel inox

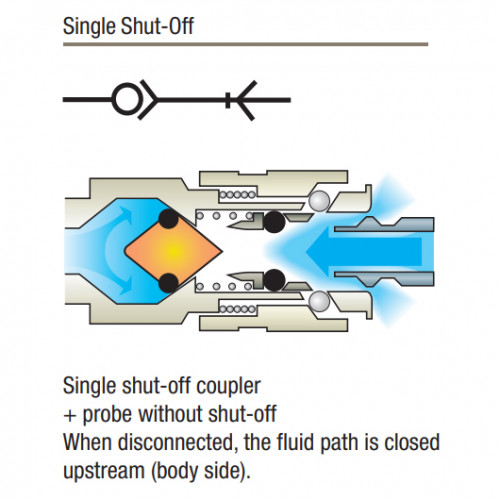

- Material valva shut-off : alama
| Cod LEGRIS | Cod RECTUS |
| 9123 13 08 | 13KATF08MPN |
| 9123 13 10 | 13KATF10MPN |
| 9123 13 13 | 13KATF13MPN |
| 9123 14 06 | 14KATF06MPN |
| 9123 14 08 | 14KATF08MPN |
| 9123 14 09 | 14KATF09MPN |
| 9123 14 10 | 14KATF10MPN |
| 9123 14 13 | 14KATF13MPN |
| 9123 17 06 | 17KATF06SPN |
| 9123 17 08 | 17KATF08SPN |
| 9123 17 10 | 17KATF10SPN |
| 9123 18 06 | 18KATF06MPN |
| 9123 18 08 | 18KATF08MPN |
| 9123 18 10 | 18KATF10MPN |
| 9123 19 06 | 19KATF06MPN |
| 9123 19 08 | 19KATF08MPN |
| 9123 19 10 | 19KATF10MPN |
| 9123 22 06 | 22KATF06MPN |
| 9123 22 08 | 22KATF08MPN |
| 9123 22 10 | 22KATF10MPN |
| 9123 23 06 | 23KATF06MPN |
| 9123 23 08 | 23KATF08MPN |
| 9123 23 10 | 23KATF10MPN |
| 9123 24 06 | 24KATF06MPN |
| 9123 24 08 | 24KATF08MPN |
| 9123 24 10 | 24KATF10MPN |
| 9123 30 08 | 30KATF08SPN |
| 9123 30 10 | 30KATF10SPN |
| 9123 30 13 | 30KATF13SPN |
