Cupla rapida mama, filet interior
Tip produs: 9214
Presiune maxima de lucru: 20 bar
Temperatura: -20⁰C ... +100⁰C
*** Codurile cuplelor LEGRIS au fost inlocuite cu coduri RECTUS
- Presiune maxima de lucru : 20 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : +100 ⁰C
- Corp : alama nichelata
- Garnituri : NBR (cauciuc)
- Arc : otel inox
- Material valva shut-off : alama
| Cod LEGRIS | Cod RECTUS |
| 9214 20 10 | 20KBIW10MPN |
| 9214 20 19 | 20KBIM05MPN |
| 9214 21 10 | 21KBIW10MPN |
| 9214 21 13 | 21KBIW13MPN |
| 9214 25 13 | 25KBIW13MPN |
| 9214 25 17 | 25KBIW17MPN |
| 9214 25 21 | 25KBIW21MPN |
| 9214 27 13 | 1700KBIW13BPN |
| 9214 27 17 | 1700KBIW17BPN |
| 9214 27 21 | 1700KBIW21BPN |
| 9214 27 27 | 1700KBIW26BPN |
| 9214X20 10 | 20KBIW10EVX |
| 9214X20 19 | 20KBIM05EVX |
| 9214X21 10 | 21KBIW10EVX |
| 9214X21 13 | 21KBIW13EVX |
| 9214X25 13 | 25KBIW13EVX |
| 9214X25 17 | 25KBIW17EVX |
| 9214X25 21 | 25KBIW21EVX |
| 9214X27 17 | 27KBIW17EVX |
| 9214X27 21 | 27KBIW21EVX |
| 9214X27 27 | 27KBIW26EVX |

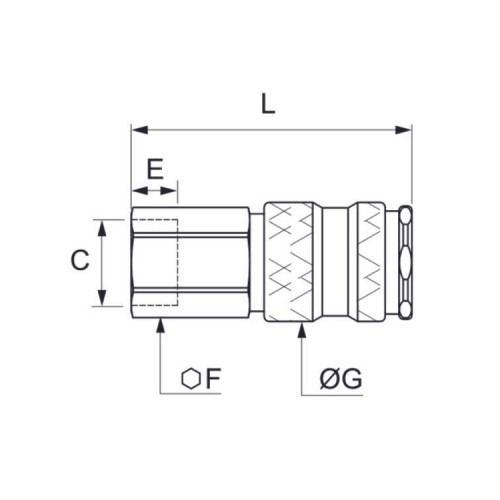

| Cod | Cod Rectus | DN mm | C | Debit l/min | E mm | F mm | ØG mm | L mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|
| 9214 25 13 | 25KBIW13MPN | 7,4 | G1/4 | 1800/710 | 9 | 19 | 23 | 55 |
|
Adauga |
| 9214 25 17 | 25KBIW17MPN | 7,4 | G3/8 | 1800/710 | 9 | 19 | 23 | 55 |
|
Adauga |
| 9214 25 21 | 25KBIW21MPN | 7,4 | G1/2 | 1800/710 | 12 | 24 | 23 | 57 |
|
Adauga |
| 9214 27 17 | 1700KBIW17BPN | 10 | G3/8 | 2400/900 | 12 | 24 | 27 | 68 |
|
Adauga |
| 9214 27 21 | 1700KBIW21BPN | 10 | G1/2 | 2400/900 | 12 | 24 | 27 | 68 |
|
Adauga |
| 9214 27 27 | 1700KBIW26BPN | 10 | G3/4 | 2400/900 | 16 | 32 | 27 | 74 |
|
Adauga |
| 9214 21 10 | 21KBIW10MPN | 5 | G1/8 | 560/310 | 9 | 14 | 16 | 36 |
|
Adauga |
