Cupla rapida tata, filet exterior
Tip produs: 9287
Presiune maxima de lucru: 20 bar
Temperatura: -20⁰C ... +100⁰C
*** Codurile cuplelor LEGRIS au fost inlocuite cu coduri RECTUS
- Presiune maxima de lucru : 20 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : +100 ⁰C
- Corp : alama nichelata
- Garnituri : NBR (cauciuc)
- Arc : otel inox

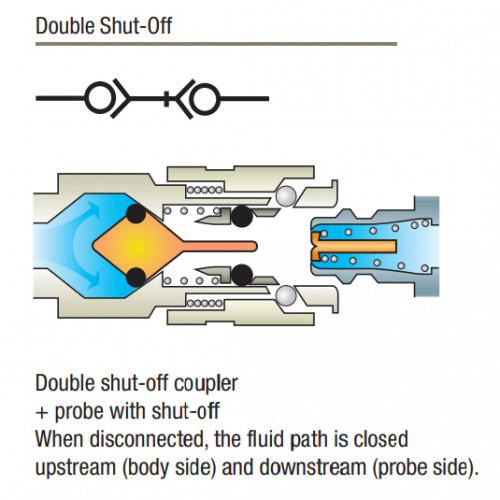

- Material valva shut-off : alama
| Cod LEGRIS | Cod RECTUS |
| 9287 20 10 | 20SBAW10MPN |
| 9287 20 19 | 20SBAM05MPN |
| 9287 21 10 | 21SBAW10MPN |
| 9287 21 13 | 21SBAW13MPN |
| 9287 25 10 | 25SBAW10MPN |
| 9287 25 13 | 25SBAW13MPN |
| 9287 25 17 | 25SBAW17MPN |
| 9287 25 17 30 | 25SBAW17MEN |
| 9287 25 21 | 25SBAW21MPN |
| 9287 27 17 | 27SBAW17MPN |
| 9287 27 17 30 | 27SBAW17MEN |
| 9287 27 21 | 27SBAW21MPN |
| 9287 27 27 | 27SBAW26MPN |
| 9287X20 10 | 20SBAW10EVX |
| 9287X20 19 | 20SBAM05EVX |
| 9287X21 10 | 21SBAW10EVX |
| 9287X21 13 | 21SBAW13EVX |
| 9287X25 13 | 25SBAW13EVX |
| 9287X25 17 | 25SBAW17EVX |
| 9287X25 21 | 25SBAW21EVX |
| 9287X27 17 | 27SBAW17EVX |
| 9287X27 21 | 27SBAW21EVX |
| 9287X27 27 | 27SBAW26EVX |

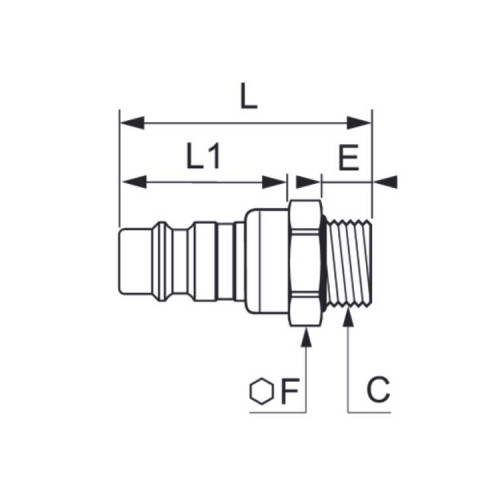

| Cod | Cod Rectus | DN mm | C | E mm | F mm | L mm | L1 mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 9287 25 10 | 25SBAW10MPN | 7,4 | G1/8 | 7 | 22 | 41 | 20 |
|
Adauga |
| 9287 25 13 | 25SBAW13MPN | 7,4 | G1/4 | 9 | 22 | 43 | 20 |
|
Adauga |
| 9287 25 17 | 25SBAW17MPN | 7,4 | G3/8 | 9 | 22 | 43 | 20 |
|
Adauga |
| 9287 25 21 | 25SBAW21MPN | 7,4 | G1/2 | 12 | 22 | 46 | 20 |
|
Adauga |
| 9287 20 19 | 20SBAM05MPN | 2,7 | M5 | 5 | 7 | 28 | 10 |
|
Adauga |
| 9287 21 10 | 21SBAW10MPN | 5 | G1/8 | 7 | 14 | 40 | 14 |
|
Adauga |
