Cupla rapida mama, filet interior
Tip produs: 9114
Presiune maxima de lucru: 20 bar
Temperatura: -20⁰C ... +100⁰C
*** Codurile cuplelor LEGRIS au fost inlocuite cu coduri RECTUS
- Presiune maxima de lucru : 20 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : +100 ⁰C
- Corp : alama nichelata
- Garnituri : NBR (cauciuc)
- Arc : otel inox
- Material valva shut-off : alama
| Cod LEGRIS | Cod RECTUS |
| 9114 13 13 | 13KAIW13MPN |
| 9114 13 17 | 13KAIW17MPN |
| 9114 13 21 | 13KAIW21MPN |
| 9114 14 13 | 14KAIW13MPN |
| 9114 14 17 | 14KAIW17MPN |
| 9114 14 21 | 14KAIW21MPN |
| 9114 17 13 | 17KAIW13SPN |
| 9114 17 17 | 17KAIW17SPN |
| 9114 17 21 | 17KAIW21SPN |
| 9114 18 13 | 18KAIW13MPN |
| 9114 18 17 | 18KAIW17MPN |
| 9114 19 13 | 19KAIW13MPN |
| 9114 19 17 | 19KAIW17MPN |
| 9114 19 21 | 19KAIW21MPN |
| 9114 22 13 | 22KAIW13MPN |
| 9114 22 17 | 22KAIW17MPN |
| 9114 22 21 | 22KAIW21MPN |
| 9114 23 13 | 23KAIW13MPN |
| 9114 23 17 | 23KAIW17MPN |
| 9114 23 21 | 23KAIW21MPN |
| 9114 24 13 | 24KAIW13MPN |
| 9114 24 17 | 24KAIW17MPN |
| 9114 24 21 | 24KAIW21MPN |
| 9114 26 13 | 26KAIW13MPN |
| 9114 26 17 | 26KAIW17MPN |
| 9114 26 21 | 26KAIW21MPN |
| 9114 30 13 | 30KAIW13SPN |
| 9114 30 17 | 30KAIW17SPN |
| 9114 30 17 20 | 30KAIW17SVN |
| 9114 30 21 | 30KAIW21SPN |

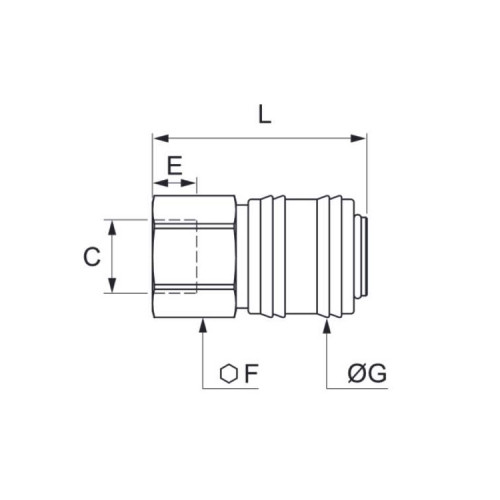

| Cod | Cod Rectus | DN mm | C | Debit l/min | E mm | F mm | ØG mm | L mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|
| 9114 26 13 | 26KAIW13MPN | 7,2 | G1/4 | 1000 | 9 | 22 | 27 | 43 |
|
Adauga |
| 9114 26 17 | 26KAIW17MPN | 7,2 | G3/8 | 1000 | 9 | 22 | 27 | 43 |
|
Adauga |
| 9114 26 21 | 26KAIW21MPN | 7,2 | G1/2 | 1000 | 12 | 24 | 27 | 46 |
|
Adauga |
| 9114 14 13 | 14KAIW13MPN | 5,5 | G1/4 | 560 | 9 | 22 | 27 | 43 |
|
Adauga |
| 9114 14 17 | 14KAIW17MPN | 5,5 | G3/8 | 560 | 9 | 22 | 27 | 43 |
|
Adauga |
| 9114 14 21 | 14KAIW21MPN | 5,5 | G1/2 | 560 | 12 | 24 | 27 | 46 |
|
Adauga |
| 9114 23 13 | 23KAIW13MPN | 5,5 | G1/4 | 900 | 9 | 19 | 23 | 55 |
|
Adauga |
| 9114 24 21 | 24KAIW21MPN | 5,5 | G1/2 | 550 | 9 | 22 | 27 | 43 |
|
Adauga |
| 9114 30 21 | 30KAIW21SPN | 8,5 | 890 | 12 | 14 | 29 | 52 |
|
Adauga |
