Racord rapid L, filet exterior BSPT, tub in inch
Tip produs: 3D09
Presiune maxima de lucru: 20 bar
Temperatura: -20⁰C ... +80⁰C
Vacuum: 755 mmHg
Racord rapid cot push-in, filet exterior conic preteflonat
- strangere pe exterior cu cheie fixa
- constructie robusta, compacta
- debit de aer maximal (full air flow),
- datare si control de calitate pentru asigurarea calitatii si trasabilitatii
- conformitate RoHS si ISO 14743
- Conformitate : ROHS
- Presiune maxima de lucru : 20 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : 80 ⁰C
- Vacuum : 755 mmHg
- Corp : polimer tehnic
- Sub-base : alama nichelata
- Garnituri : NBR (cauciuc)
- Inel retinere : otel inox
- Tratament : PTFE (teflon)
- Catalog racorduri rapide seria LF3000/LF3200 : Deschide

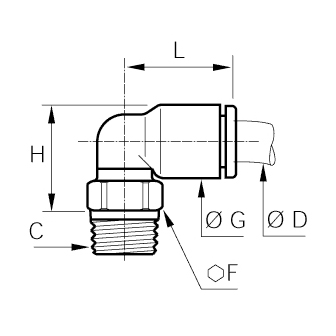

| Cod | ØD inch | C | F mm | ØG mm | H mm | L mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 3109 53 10 | 1/8 | R1/8 | 10 | 8,509 | 13,462 | 14,503 |
|
Adauga |
| 3109 56 10 | 1/4 | R1/8 | 10 | 10,922 | 17,018 | 18,034 |
|
Adauga |
| 3109 56 13 | 1/4 | R1/4 | 14 | 10,922 | 17,018 | 18,034 |
|
Adauga |
| 3109 60 13 | 3/8 | R1/4 | 15 | 16,002 | 22,098 | 26,416 |
|
Adauga |
| 3109 60 17 | 3/8 | R3/8 | 17 | 16,002 | 22,098 | 26,416 |
|
Adauga |
| 3109 62 13 | 1/2 | R1/4 | 20 | 22,098 | 30,988 | 35,052 |
|
Adauga |
| 3109 62 17 | 1/2 | R3/8 | 20 | 22,098 | 30,988 | 35,052 |
|
Adauga |
| 3109 62 21 | 1/2 | R1/2 | 24 | 22,098 | 28,448 | 35,052 |
|
Adauga |
