Racord rapid L oscilant, filet exterior BSPT
Tip produs: 3159
Presiune maxima de lucru: 20 bar
Temperatura: -20⁰C ... +80⁰C
Vacuum: 755 mmHg

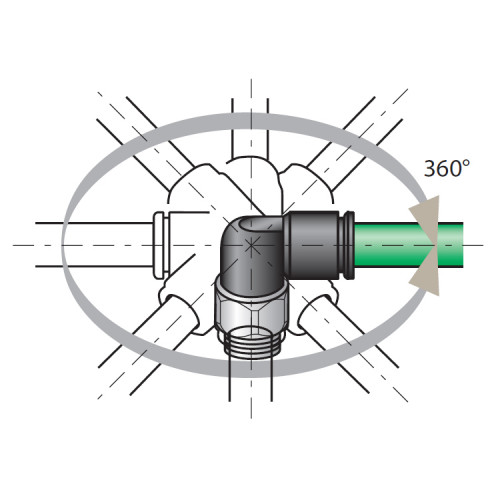

Racord rapid cot push-in, oscilant, filet exterior conic
- strangere pe exterior cu cheie fixa
- constructie robusta, compacta
- debit de aer maximal (full air flow),
- datare si control de calitate pentru asigurarea calitatii si trasabilitatii
- conformitate RoHS si ISO 14743
- Conformitate : ROHS
- Presiune maxima de lucru : 20 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : 80 ⁰C
- Vacuum : 755 mmHg

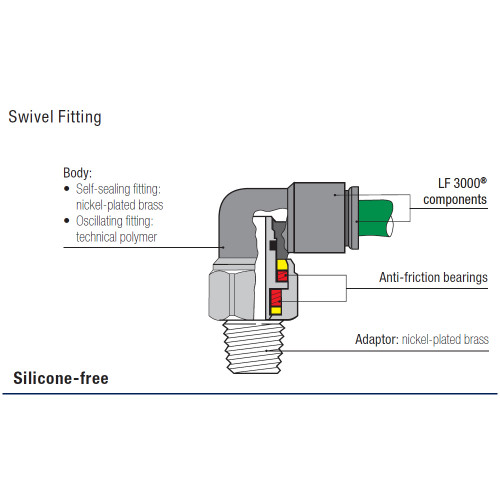

- Corp : polimer tehnic
- Sub-base : alama nichelata
- Garnituri : NBR (cauciuc)
- Inel retinere : otel inox
- Tratament : PTFE (teflon)
- Inel strangere : PTFE (teflon)
- Catalog racorduri rapide seria LF3000/LF3200 : Deschide

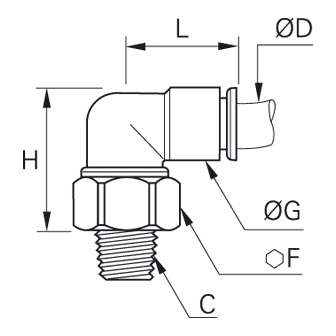

| Cod | ØD mm | C | F mm | ØG mm | H mm | L mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 3159 04 10 | 4 | R1/8 | 12 | 11 | 22 | 17,5 |
|
Adauga |
| 3159 06 10 | 6 | R1/8 | 14 | 14 | 26,5 | 20,5 |
|
Adauga |
| 3159 06 13 | 6 | R1/4 | 14 | 14 | 23,5 | 20,5 |
|
Adauga |
| 3159 08 10 | 8 | R1/8 | 17 | 16 | 32 | 23,5 |
|
Adauga |
| 3159 08 13 | 8 | R1/4 | 17 | 16 | 29 | 23,5 |
|
Adauga |
| 3159 08 17 | 8 | R3/8 | 17 | 16 | 25 | 23,5 |
|
Adauga |
| 3159 10 13 | 10 | R1/4 | 19 | 19,5 | 37,5 | 29 |
|
Adauga |
| 3159 10 17 | 10 | R3/8 | 19 | 19,5 | 33,5 | 29 |
|
Adauga |
| 3159 12 13 | 12 | R1/4 | 21 | 22 | 44,5 | 33,5 |
|
Adauga |
| 3159 12 17 | 12 | R3/8 | 21 | 22 | 41 | 33,5 |
|
Adauga |
