Racord rapid L, filet exterior NPT, tub in mm
Tip produs: 3C09
Presiune maxima de lucru: 20 bar
Temperatura: -20⁰C ... +80⁰C
Vacuum: 755 mmHg
Racord rapid cot push-in, filet exterior NPT preteflonat
- strangere pe exterior cu cheie fixa
- constructie robusta, compacta
- debit de aer maximal (full air flow),
- datare si control de calitate pentru asigurarea calitatii si trasabilitatii
- conformitate RoHS si ISO 14743.
- Conformitate : ROHS
- Presiune maxima de lucru : 20 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : 80 ⁰C
- Vacuum : 755 mmHg
- Corp : polimer tehnic
- Sub-base : alama nichelata
- Garnituri : NBR (cauciuc)
- Inel retinere : otel inox
- Tratament : PTFE (teflon)
- Catalog racorduri rapide seria LF3000/LF3200 : Deschide

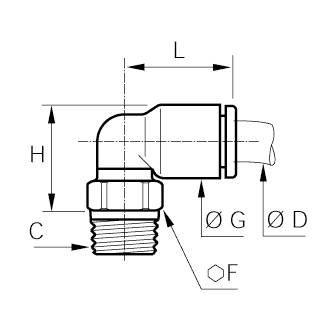

| Cod | ØD mm | C | F mm | ØG mm | H mm | L mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 3109 04 11 | 4 | NPT1/8 | 11 | 8,382 | 13,462 | 13,970 |
|
Adauga |
| 3109 04 14 | 4 | NPT1/4 | 14 | 8,382 | 13,970 | 13,970 |
|
Adauga |
| 3109 06 11 | 6 | NPT1/8 | 11 | 10,5 | 15,5 | 16 |
|
Adauga |
| 3109 06 14 | 6 | NPT1/4 | 14 | 10,5 | 16 | 16 |
|
Adauga |
| 3109 08 11 | 8 | NPT1/8 | 11 | 13,462 | 19,050 | 23,114 |
|
Adauga |
| 3109 08 14 | 8 | NPT1/4 | 14 | 13,462 | 18,034 | 23,114 |
|
Adauga |
| 3109 10 14 | 10 | NPT1/4 | 15 | 16 | 23 | 26,5 |
|
Adauga |
| 3109 10 18 | 10 | NPT3/8 | 18 | 16 | 22 | 26,5 |
|
Adauga |
| 3109 10 22 | 10 | NPT1/2 | 22 | 16 | 23 | 26,5 |
|
Adauga |
| 3109 12 22 | 12 | NPT1/2 | 22 | 19 | 26 | 31 |
|
Adauga |
