Racord rapid L lung, filet exterior BSPT (sau NPT, UNF)
Tip produs: 3129
Presiune maxima de lucru: 20 bar
Temperatura: -20⁰C ... +80⁰C
Vacuum: 755 mmHg
Racord rapid cot inalt push-in, filet exterior conic preteflonat
- inaltime proiectata astfel incat tubul sa treaca peste racordul cot scurt 3109
- strangere pe exterior cu cheie fixa
- constructie robusta, compacta
- debit de aer maximal (full air flow),
- datare si control de calitate pentru asigurarea calitatii si trasabilitatii
- conformitate RoHS si ISO 14743
- Conformitate : ROHS
- Presiune maxima de lucru : 20 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : 80 ⁰C
- Vacuum : 755 mmHg
- Corp : polimer tehnic
- Sub-base : alama nichelata
- Garnituri : NBR (cauciuc)
- Inel retinere : otel inox
- Tratament : PTFE (teflon)
- Catalog racorduri rapide seria LF3000/LF3200 : Deschide

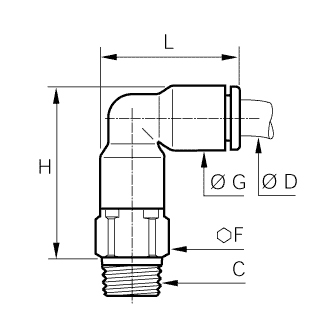

| Cod | ØD mm | C | F mm | ØG mm | H mm | L mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 3129 04 10 | 4 | R1/8 | 10 | 8,5 | 23 | 19 |
|
Adauga |
| 3129 04 13 | 4 | R1/4 | 14 | 8,5 | 23,5 | 19 |
|
Adauga |
| 3129 06 10 | 6 | R1/8 | 10 | 10,5 | 27 | 22,5 |
|
Adauga |
| 3129 06 13 | 6 | R1/4 | 14 | 10,5 | 27,5 | 22,5 |
|
Adauga |
| 3129 08 10 | 8 | R1/8 | 13 | 13,5 | 34,5 | 29,5 |
|
Adauga |
| 3129 08 13 | 8 | R1/4 | 14 | 13,5 | 32,5 | 29,5 |
|
Adauga |
| 3129 08 17 | 8 | R3/8 | 17 | 13,5 | 33 | 29,5 |
|
Adauga |
| 3129 10 13 | 10 | R1/4 | 15 | 16 | 39,5 | 34,5 |
|
Adauga |
| 3129 10 17 | 10 | R3/8 | 17 | 16 | 39,5 | 34,5 |
|
Adauga |
| 3129 10 21 | 10 | R1/2 | 21 | 16 | 39,5 | 34,5 |
|
Adauga |
| 3129 12 13 | 12 | R1/4 | 19 | 19 | 45,5 | 40,5 |
|
Adauga |
| 3129 12 17 | 12 | R3/8 | 19 | 19 | 45,5 | 40,5 |
|
Adauga |
| 3129 12 21 | 12 | R1/2 | 21 | 19 | 45,5 | 40,5 |
|
Adauga |
| 3129 14 17 | 14 | R3/8 | 21 | 22 | 51,5 | 46,5 |
|
Adauga |
| 3129 14 21 | 14 | R1/2 | 21 | 22 | 51,5 | 46,5 |
|
Adauga |
| 3129 56 11 | 1/4 inch | NPT1/8 | 11 | 10,922 | 28,448 | 23,622 |
|
Adauga |
| 3129 56 14 | 1/4 inch | NPT1/4 | 14 | 10,922 | 27,432 | 23,622 |
|
Adauga |
| 3129 60 14 | 3/8 inch | NPT1/4 | 17 | 16,002 | 35,814 | 33,782 |
|
Adauga |
