Racord rapid drept, filet exterior BSPT
Tip produs: 3175
Presiune maxima de lucru: 20 bar
Temperatura: -20⁰C ... +80⁰C
Vacuum: 755 mmHg
Racord rapid drept push-in, filet exterior conic preteflonat
- strangere pe exterior cu cheie fixa/tubulara, sau pe interior cu cheie imbus (hexagonala)
- constructie robusta, compacta
- debit de aer maximal (full air flow),
- datare si control de calitate pentru asigurarea calitatii si trasabilitatii
- conformitate RoHS si ISO 14743.
*** pentru racordurile cu tub de 16 mm: presiunea de lucru este de 16 bar la 20°C si 10 bar la 80°C.
- Conformitate : ROHS
- Presiune maxima de lucru : 20 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : 80 ⁰C
- Vacuum : 755 mmHg
- Corp : alama nichelata
- Garnituri : NBR (cauciuc)
- Inel retinere : otel inox
- Tratament : PTFE (teflon)
- Catalog racorduri rapide seria LF3000/LF3200 : Deschide

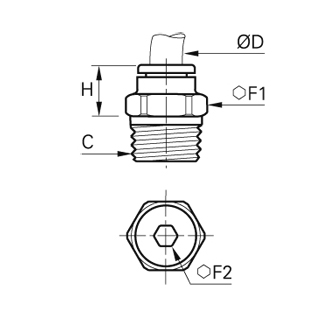

| Cod | ØD mm | C | F1 mm | F2 mm | H mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|
| 3175 04 10 | 4 | R1/8 | 10 | 3 | 9,5 |
|
Adauga |
| 3175 04 13 | 4 | R1/4 | 14 | 3 | 6,5 |
|
Adauga |
| 3175 04 17 | 4 | R3/8 | 17 | 3 | 8 |
|
Adauga |
| 3175 06 10 | 6 | R1/8 | 11 | 4 | 11,5 |
|
Adauga |
| 3175 06 13 | 6 | R1/4 | 14 | 4 | 8,5 |
|
Adauga |
| 3175 06 17 | 6 | R3/8 | 17 | 4 | 8,5 |
|
Adauga |
| 3175 06 21 | 6 | R1/2 | 21 | 4 | 9 |
|
Adauga |
| 3175 08 10 | 8 | R1/8 | 13 | 5 | 20 |
|
Adauga |
| 3175 08 13 | 8 | R1/4 | 14 | 6 | 17 |
|
Adauga |
| 3175 08 17 | 8 | R3/8 | 17 | 6 | 13 |
|
Adauga |
| 3175 08 21 | 8 | R1/2 | 21 | 6 | 12 |
|
Adauga |
| 3175 10 10 | 10 | R1/8 | 16 | 5 | 22,5 |
|
Adauga |
| 3175 10 13 | 10 | R1/4 | 16 | 7 | 20 |
|
Adauga |
| 3175 10 17 | 10 | R3/8 | 17 | 8 | 16,5 |
|
Adauga |
| 3175 10 21 | 10 | R1/2 | 21 | 8 | 14 |
|
Adauga |
| 3175 12 13 | 12 | R1/4 | 19 | 7 | 26,5 |
|
Adauga |
| 3175 12 17 | 12 | R3/8 | 19 | 9 | 24 |
|
Adauga |
| 3175 12 21 | 12 | R1/2 | 21 | 10 | 19,5 |
|
Adauga |
| 3175 14 17 | 14 | R3/8 | 22 | 9 | 28,5 |
|
Adauga |
| 3175 14 21 | 14 | R1/2 | 24 | 10 | 23,5 |
|
Adauga |
| 3175 16 17 | 16 | R3/8 | 27 | 9 | 32,5 |
|
Adauga |
| 3175 16 21 | 16 | R1/2 | 27 | 12 | 32,5 |
|
Adauga |
