Racord rapid drept, Liquifit, filet exterior BSPT
Tip produs: 6505
Presiune maxima de lucru: 16 bar
Temperatura: -10⁰C ... +95⁰C
Vacuum: 755 mmHg
Racord rapid drept, filet exterior conic
- strangere pe exterior cu cheie fixa/tubulara, sau pe interior cu cheie imbus (hexagonala)
- constructie robusta, compacta, instalare usoara
- debit maximal (full flow)
- datare si testare pierderi pentru fiecare produs in parte pentru asigurarea calitatii si trasabilitatii
- respecta standardele NSF 51, NSF 61 C HOT, WRAS, FDA, ACS, in concordanta cu reglementarea (EC) 1935/2004, RoHS
- Conformitate : ROHS
- Presiune maxima de lucru : 16 bar
- Temperatura minima de lucru : -10 ⁰C
- Temperatura maxima de lucru : 95 ⁰C
- Vacuum : 755 mmHg
- Corp : polimer biologic
- Garnituri : EPDM (cauciuc)
- Inel retinere : otel inox

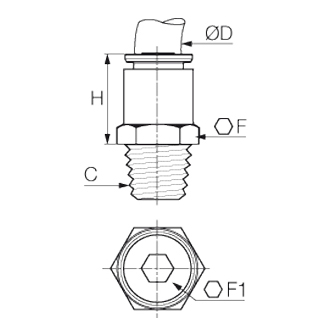

| Cod | ØD mm | C | F mm | F1 mm | H mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|
| 6505 04 10WP2 | 4 | R1/8 | 11 | 3 | 18 |
|
Adauga |
| 6505 04 13WP2 | 4 | R1/4 | 14 | 3 | 18 |
|
Adauga |
| 6505 06 10WP2 | 6 | R1/8 | 11 | 4 | 18 |
|
Adauga |
| 6505 06 13WP2 | 6 | R1/4 | 14 | 4 | 18 |
|
Adauga |
| 6505 08 10WP2 | 8 | R1/8 | 17 | 6 | 20 |
|
Adauga |
| 6505 08 13WP2 | 8 | R1/4 | 14 | 6 | 20 |
|
Adauga |
| 6505 08 17WP2 | 8 | R3/8 | 17 | 6 | 20 |
|
Adauga |
| 6505 10 13WP2 | 10 | R1/4 | 17 | 7 | 21,5 |
|
Adauga |
| 6505 10 17WP2 | 10 | R3/8 | 19 | 7 | 21,5 |
|
Adauga |
| 6505 10 21WP2 | 10 | R1/2 | 22 | 7 | 21,5 |
|
Adauga |
| 6505 12 17WP2 | 12 | R3/8 | 19 | 9 | 24,5 |
|
Adauga |
| 6505 12 21WP2 | 12 | R1/2 | 22 | 9 | 24,5 |
|
Adauga |
