Racord rapid drept, Liquifit, filet exterior NPT, tub in inch
Tip produs: 6A05
Presiune maxima de lucru: 16 bar
Temperatura: -10⁰C ... +95⁰C
Vacuum: 755 mmHg
Racord rapid drept, filet exterior NPT
- strangere pe exterior cu cheie fixa/tubulara, sau pe interior cu cheie imbus (hexagonala)
- constructie robusta, compacta, instalare usoara
- debit maximal (full flow)
- datare si testare pierderi pentru fiecare produs in parte pentru asigurarea calitatii si trasabilitatii
- respecta standardele NSF 51, NSF 61 C HOT, WRAS, FDA, ACS, in concordanta cu reglementarea (EC) 1935/2004, RoHS
- Conformitate : ROHS
- Presiune maxima de lucru : 16 bar
- Temperatura minima de lucru : -10 ⁰C
- Temperatura maxima de lucru : 95 ⁰C
- Vacuum : 755 mmHg
- Corp : polimer biologic
- Garnituri : EPDM (cauciuc)
- Inel retinere : otel inox

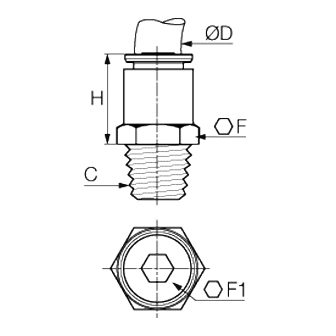

| Cod | ØD inch | C | F inch | F1 inch | H mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|
| 6505 56 11WP2 | 1/4 | NPT1/8 | 1/2 | 5/32 | 17 |
|
Adauga |
| 6505 56 14WP2 | 1/4 | NPT1/4 | 9/16 | 5/32 | 17 |
|
Adauga |
| 6505 60 14WP2 | 3/8 | NPT1/4 | 3/4 | 1/4 | 22 |
|
Adauga |
| 6505 60 18WP2 | 3/8 | NPT3/8 | 3/4 | 1/4 | 22 |
|
Adauga |
| 6505 60 22WP2 | 3/8 | NPT1/2 | 15/16 | 1/4 | 27 |
|
Adauga |
| 6505 62 18WP2 | 1/2 | NPT3/8 | 15/16 | 3/8 | 28 |
|
Adauga |
| 6505 62 22WP2 | 1/2 | NPT1/2 | 15/16 | 3/8 | 28 |
|
Adauga |
