Racord drept plug-in, Liquifit, filet BSPT
Tip produs: 6521
Presiune maxima de lucru: 16 bar
Temperatura: -10⁰C ... +95⁰C
Vacuum: 755 mmHg
Racord drept adaptor plug-in, filet exterior conic
- strangere pe exterior cu cheie fixa
- datare si testare pierderi pentru fiecare produs in parte pentru asigurarea calitatii si trasabilitatii
- respecta standardele NSF 51, NSF 61 C HOT, WRAS, FDA, ACS, in concordanta cu reglementarea (EC) 1935/2004, RoHS
- Conformitate : ROHS
- Presiune maxima de lucru : 16 bar
- Temperatura minima de lucru : -10 ⁰C
- Temperatura maxima de lucru : 95 ⁰C
- Vacuum : 755 mmHg
- Corp : polimer biologic

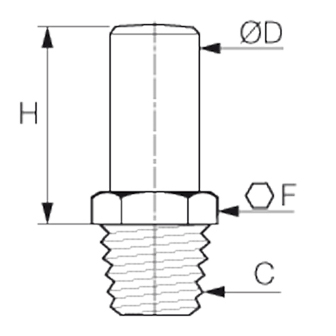

| Cod | ØD mm | C | F mm | H mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|
| 6521 06 10WP2 | 6 | R1/8 | 13 | 19 |
|
Adauga |
| 6521 06 13WP2 | 6 | R1/4 | 14 | 19 |
|
Adauga |
| 6521 06 17WP2 | 6 | R3/8 | 17 | 19 |
|
Adauga |
| 6521 08 10WP2 | 8 | R1/8 | 19 | 23 |
|
Adauga |
| 6521 08 13WP2 | 8 | R1/4 | 19 | 23 |
|
Adauga |
| 6521 08 17WP2 | 8 | R3/8 | 19 | 23 |
|
Adauga |
| 6521 10 13WP2 | 10 | R1/4 | 19 | 25 |
|
Adauga |
| 6521 10 17WP2 | 10 | R3/8 | 19 | 25 |
|
Adauga |
| 6521 10 21WP2 | 10 | R1/2 | 22 | 25 |
|
Adauga |
| 6521 12 17WP2 | 12 | R3/8 | 22 | 28 |
|
Adauga |
| 6521 12 21WP2 | 12 | R1/2 | 22 | 28 |
|
Adauga |
