Kit racord reducator alama
Tip produs: 0166
Presiune maxima de lucru: 550 bar
Temperatura: -40⁰C ... +250⁰C
Vacuum: 755 mmHg

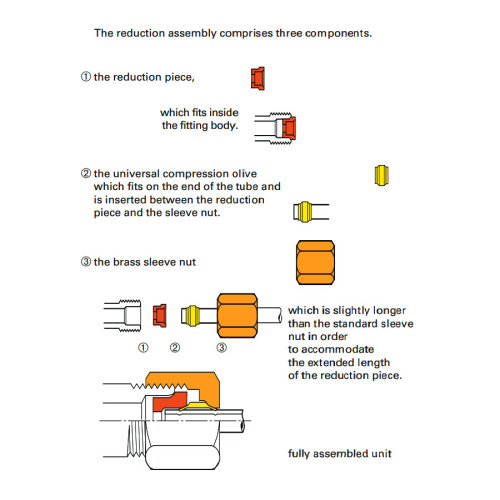

Permite conectarea unui tub / teava de diametru mai mic la un fitting de diametru mai mare.
- Conformitate : ROHS
- Presiune maxima de lucru : 550 bar
- Temperatura minima de lucru : -40 ⁰C
- Temperatura maxima de lucru : 250 ⁰C
- Vacuum : 755 mmHg
- Corp : alama
- Piulita : alama
- Inel strangere : alama
- Catalog fitinguri compresie alama : Deschide

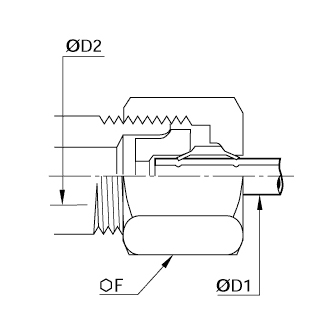

| Cod | ØD1 mm | ØD2 mm | F mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|
| 0166 04 06 | 4 | 6 | 13 |
|
Adauga |
| 0166 05 06 | 5 | 6 | 13 |
|
Adauga |
| 0166 06 08 | 6 | 8 | 14 |
|
Adauga |
| 0166 06 10 | 6 | 10 | 19 |
|
Adauga |
| 0166 06 12 | 6 | 12 | 22 |
|
Adauga |
| 0166 06 14 | 6 | 14 | 24 |
|
Adauga |
| 0166 06 16 | 6 | 16 | 27 |
|
Adauga |
| 0166 08 10 | 8 | 10 | 19 |
|
Adauga |
| 0166 08 12 | 8 | 12 | 22 |
|
Adauga |
| 0166 08 14 | 8 | 14 | 24 |
|
Adauga |
| 0166 08 16 | 8 | 16 | 27 |
|
Adauga |
| 0166 10 12 | 10 | 12 | 22 |
|
Adauga |
| 0166 10 14 | 10 | 14 | 24 |
|
Adauga |
| 0166 10 16 | 10 | 16 | 27 |
|
Adauga |
| 0166 10 18 | 10 | 18 | 30 |
|
Adauga |
| 0166 10 20 | 10 | 20 | 32 |
|
Adauga |
| 0166 10 22 | 10 | 22 | 36 |
|
Adauga |
| 0166 12 16 | 12 | 16 | 27 |
|
Adauga |
| 0166 12 22 | 12 | 22 | 36 |
|
Adauga |
| 0166 14 16 | 14 | 16 | 27 |
|
Adauga |
| 0166 14 18 | 14 | 18 | 30 |
|
Adauga |
| 0166 14 25 | 14 | 25 | 41 |
|
Adauga |
| 0166 16 20 | 16 | 20 | 32 |
|
Adauga |
| 0166 16 22 | 16 | 22 | 36 |
|
Adauga |
| 0166 18 22 | 18 | 22 | 36 |
|
Adauga |
| 0166 20 25 | 20 | 25 | 41 |
|
Adauga |
