Racord banjo T, alama, garnituri bi-material
Tip produs: 011C
Presiune maxima de lucru: 550 bar
Temperatura: -40⁰C ... +100⁰C
Vacuum: 755 mmHg
Fitting banjo dublu de compresie din alama, cu filet exterior paralel si garnituri bi-material, pentru tub sau teava.
- Conformitate : ROHS
- Presiune maxima de lucru : 550 bar
- Temperatura minima de lucru : -40 ⁰C
- Temperatura maxima de lucru : 100 ⁰C
- Vacuum : 755 mmHg
- Corp : alama
- Piulita : alama
- Garnitura : otel zincat si cauciuc NBR
- Surub : alama
- Inel strangere : alama
- Catalog fitinguri compresie alama : Deschide

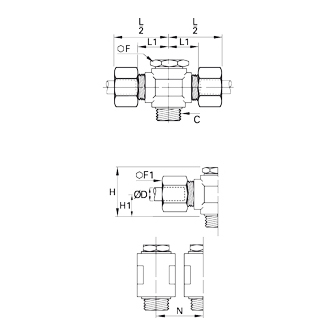

| Cod | ØD mm | C | F mm | F1 mm | H mm | H1 mm | L1 mm | N mm | L/2 mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0119 04 10 39 | 4 | G1/8 | 14 | 10 | 23 | 9,5 | 14,5 | 17,5 | 24 |
|
Adauga |
| 0119 06 10 39 | 6 | G1/8 | 14 | 13 | 23 | 9,5 | 14,5 | 17,5 | 25 |
|
Adauga |
| 0119 08 10 39 | 8 | G1/8 | 14 | 14 | 23 | 9,5 | 15,5 | 17,5 | 28 |
|
Adauga |
| 0119 08 13 39 | 8 | G1/4 | 17 | 14 | 24 | 10 | 15,5 | 21 | 28 |
|
Adauga |
| 0119 10 13 39 | 10 | G1/4 | 17 | 19 | 30 | 13 | 19 | 23 | 34 |
|
Adauga |
| 0119 12 13 39 | 12 | G1/4 | 17 | 22 | 33 | 14,5 | 19 | 23 | 34 |
|
Adauga |
| 0119 14 21 39 | 14 | G1/2 | 27 | 24 | 39 | 16,5 | 20,5 | 32,5 | 38 |
|
Adauga |
| 0119 18 21 39 | 18 | G1/2 | 27 | 30 | 47 | 20 | 24,5 | 36 | 43 |
|
Adauga |
| 0119 22 27 39 | 22 | G3/4 | 32 | 36 | 54 | 22,5 | 24,5 | 39 | 45 |
|
Adauga |
