Racord T simetric, alama, filet exterior BSPT
Tip produs: 0108
Presiune maxima de lucru: 550 bar
Temperatura: -40⁰C ... +250⁰C
Vacuum: 755 mmHg

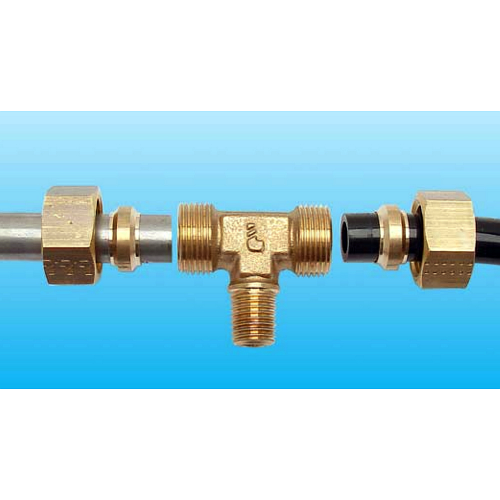

Fitting T de compresie din alama, simetric, cu filet exterior conic, pentru tub sau teava.
- Conformitate : ROHS
- Presiune maxima de lucru : 550 bar
- Temperatura minima de lucru : -40 ⁰C
- Temperatura maxima de lucru : 250 ⁰C
- Vacuum : 755 mmHg
- Corp : alama
- Piulita : alama
- Inel strangere : alama
- Catalog fitinguri compresie alama : Deschide

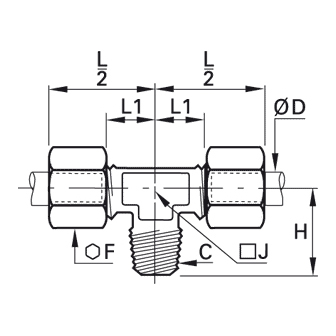

| Cod | ØD mm | C | F mm | H mm | J mm | L1 mm | L/2 mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 0108 04 10 | 4 | R1/8 | 10 | 17 | 8 | 9,5 | 19 |
|
Adauga |
| 0108 05 10 | 5 | R1/8 | 12 | 17,5 | 8 | 11 | 21 |
|
Adauga |
| 0108 06 10 | 6 | R1/8 | 13 | 18 | 8 | 11 | 22 |
|
Adauga |
| 0108 06 13 | 6 | R1/4 | 13 | 21,5 | 10 | 16 | 27 |
|
Adauga |
| 0108 08 10 | 8 | R1/8 | 14 | 18,5 | 10 | 15 | 28 |
|
Adauga |
| 0108 08 13 | 8 | R1/4 | 14 | 22 | 10 | 15 | 28 |
|
Adauga |
| 0108 08 17 | 8 | R3/8 | 14 | 24 | 12 | 15 | 28 |
|
Adauga |
| 0108 10 13 | 10 | R1/4 | 19 | 25 | 12 | 14,5 | 30 |
|
Adauga |
| 0108 10 17 | 10 | R3/8 | 19 | 25,5 | 12 | 14,5 | 30 |
|
Adauga |
| 0108 12 13 | 12 | R1/4 | 22 | 26 | 15 | 15 | 30 |
|
Adauga |
| 0108 12 17 | 12 | R3/8 | 22 | 27 | 15 | 15 | 30 |
|
Adauga |
| 0108 14 17 | 14 | R3/8 | 24 | 30 | 19 | 18 | 35 |
|
Adauga |
| 0108 14 21 | 14 | R1/2 | 24 | 32 | 19 | 18 | 35 |
|
Adauga |
| 0108 15 17 | 15 | R3/8 | 24 | 30 | 19 | 18 | 35 |
|
Adauga |
| 0108 15 21 | 15 | R1/2 | 24 | 32 | 19 | 18 | 35 |
|
Adauga |
| 0108 16 17 | 16 | R3/8 | 27 | 30 | 19 | 21 | 39 |
|
Adauga |
| 0108 16 21 | 16 | R1/2 | 27 | 33,5 | 19 | 21 | 39 |
|
Adauga |
| 0108 18 21 | 18 | R1/2 | 30 | 35,5 | 23 | 21,5 | 41 |
|
Adauga |
| 0108 20 27 | 20 | R3/4 | 32 | 38 | 23 | 21,5 | 42 |
|
Adauga |
| 0108 22 27 | 22 | R3/4 | 36 | 40 | 27 | 29 | 50 |
|
Adauga |
