Racord drept alama, filet exterior NPT
Tip produs: 01A5
Presiune maxima de lucru: 550 bar
Temperatura: -40⁰C ... +250⁰C
Vacuum: 755 mmHg

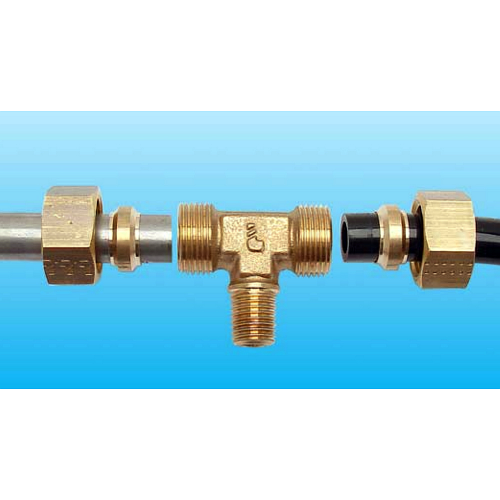

Fitting de compresie din alama, drept, cu filet NPT exterior pentru tub sau teava.
- Conformitate : ROHS
- Presiune maxima de lucru : 550 bar
- Temperatura minima de lucru : -40 ⁰C
- Temperatura maxima de lucru : 250 ⁰C
- Vacuum : 755 mmHg
- Corp : alama
- Piulita : alama
- Inel strangere : alama

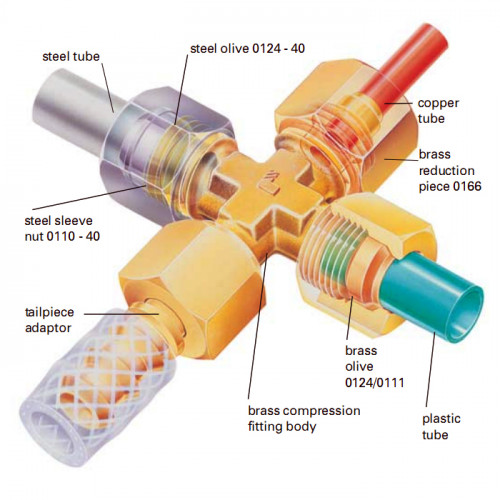

- Catalog fitinguri compresie alama : Deschide

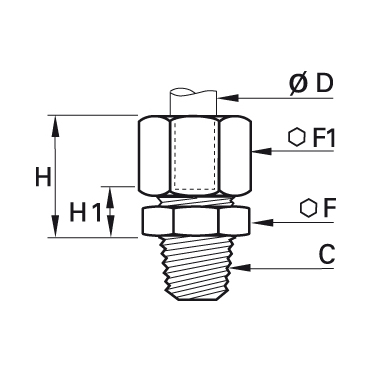

| Cod | ØD mm | C | F mm | F1 mm | H max mm | H1 mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 0105 06 11 | 6 | NPT1/8 | 11 | 13 | 18 | 7,5 |
|
Adauga |
| 0105 06 14 | 6 | NPT1/4 | 14 | 13 | 18 | 7,5 |
|
Adauga |
| 0105 08 11 | 8 | NPT1/8 | 13 | 14 | 21 | 7 |
|
Adauga |
| 0105 08 14 | 8 | NPT1/4 | 14 | 14 | 18,5 | 7 |
|
Adauga |
| 0105 10 14 | 10 | NPT1/4 | 17 | 19 | 24 | 9 |
|
Adauga |
| 0105 10 18 | 10 | NPT3/8 | 17 | 19 | 24 | 9 |
|
Adauga |
| 0105 10 22 | 10 | NPT1/2 | 22 | 19 | 25 | 10 |
|
Adauga |
