Racord X alama
Tip produs: 0107
Presiune maxima de lucru: 550 bar
Temperatura: -40⁰C ... +250⁰C
Vacuum: 755 mmHg

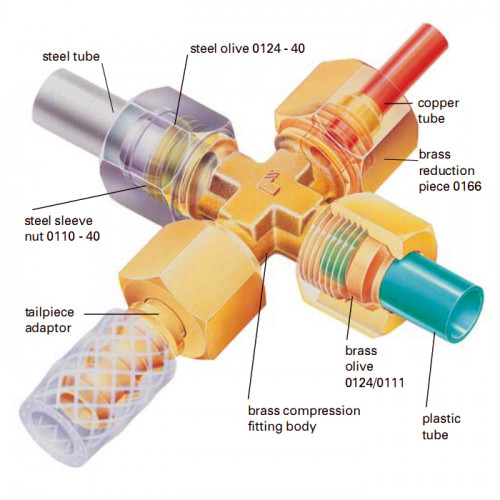

Fitting X de compresie din alama, pentru tub sau teava
- Conformitate : ROHS
- Presiune maxima de lucru : 550 bar
- Temperatura minima de lucru : -40 ⁰C
- Temperatura maxima de lucru : 250 ⁰C
- Vacuum : 755 mmHg
- Corp : alama
- Piulita : alama
- Inel strangere : alama
- Catalog fitinguri compresie alama : Deschide

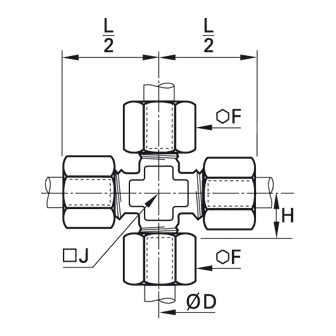

| Cod | ØD mm | F mm | H mm | J mm | L/2 mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|
| 0107 06 00 | 6 | 13 | 11 | 8 | 22 |
|
Adauga |
| 0107 08 00 | 8 | 14 | 15 | 11 | 28 |
|
Adauga |
| 0107 10 00 | 10 | 19 | 14,5 | 14 | 30 |
|
Adauga |
| 0107 12 00 | 12 | 22 | 15 | 15 | 35 |
|
Adauga |
| 0107 14 00 | 14 | 24 | 18 | 20 | 35 |
|
Adauga |
| 0107 16 00 | 16 | 27 | 21 | 20 | 39 |
|
Adauga |
| 0107 18 00 | 18 | 30 | 21,5 | 25 | 41 |
|
Adauga |
| 0107 22 00 | 22 | 36 | 29 | 27 | 50 |
|
Adauga |
