Racord adaptor alama, teava-filet exterior BSPP, garnitura bi-material
Tip produs: 0128
Presiune maxima de lucru: 550 bar
Temperatura: -40⁰C ... +100⁰C
Vacuum: 755 mmHg
Fiting de adaptare teava-filet exterior paralel, garnitura bi-material
- Conformitate : ROHS
- Presiune maxima de lucru : 550 bar
- Temperatura minima de lucru : -40 ⁰C
- Temperatura maxima de lucru : 100 ⁰C
- Vacuum : 755 mmHg
- Corp : alama
- Garnitura : otel zincat si cauciuc NBR
- Catalog fitinguri compresie alama : Deschide

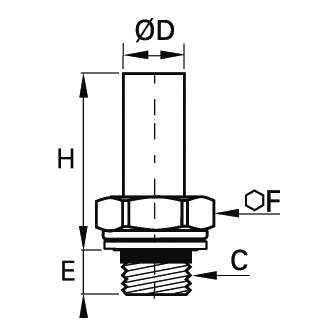

| Cod | ØD mm | C | E mm | F mm | H mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|
| 0128 04 10 39 | 4 | G1/8 | 7,5 | 13 | 20 |
|
Adauga |
| 0128 04 13 39 | 4 | G1/4 | 9 | 17 | 22 |
|
Adauga |
| 0128 06 10 39 | 6 | G1/8 | 7,5 | 13 | 21 |
|
Adauga |
| 0128 06 13 39 | 6 | G1/4 | 9 | 17 | 23 |
|
Adauga |
| 0128 08 10 39 | 8 | G1/8 | 7,5 | 13 | 23 |
|
Adauga |
| 0128 08 13 39 | 8 | G1/4 | 9 | 17 | 25 |
|
Adauga |
| 0128 08 17 39 | 8 | G3/8 | 12 | 22 | 26 |
|
Adauga |
| 0128 10 13 39 | 10 | G1/4 | 9 | 17 | 28 |
|
Adauga |
| 0128 10 17 39 | 10 | G3/8 | 12 | 22 | 29 |
|
Adauga |
| 0128 10 21 39 | 10 | G1/2 | 27 | 27 | 30 |
|
Adauga |
| 0128 14 17 39 | 14 | G3/8 | 12 | 22 | 30,5 |
|
Adauga |
| 0128 14 21 39 | 14 | G1/2 | 27 | 27 | 31,5 |
|
Adauga |
| 0128 18 21 39 | 18 | G1/2 | 27 | 27 | 33,5 |
|
Adauga |
| 0128 18 27 39 | 18 | G3/4 | 14 | 32 | 34,5 |
|
Adauga |
| 0128 22 27 39 | 22 | G3/4 | 14 | 32 | 36,5 |
|
Adauga |
| 0128 22 34 39 | 22 | G1 | 16,5 | 41 | 38 |
|
Adauga |
| 0128 28 34 39 | 28 | G1 | 16,5 | 41 | 42,5 |
|
Adauga |
