Racord adaptor alama, teava-filet exterior BSPT
Tip produs: 0120
Presiune maxima de lucru: 550 bar
Temperatura: -40⁰C ... +250⁰C
Vacuum: 755 mmHg
Fiting de adaptare teava-filet exterior conic
- Conformitate : ROHS
- Presiune maxima de lucru : 550 bar
- Temperatura minima de lucru : -40 ⁰C
- Temperatura maxima de lucru : 250 ⁰C
- Vacuum : 755 mmHg
- Corp : alama
- Catalog fitinguri compresie alama : Deschide

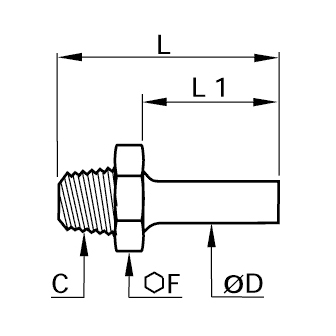

| Cod | ØD mm | C | F mm | L mm | L1 mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|
| 0120 04 10 | 4 | R1/8 | 11 | 25,5 | 14 |
|
Adauga |
| 0120 05 10 | 5 | R1/8 | 11 | 26 | 14,5 |
|
Adauga |
| 0120 06 10 | 6 | R1/8 | 11 | 26,5 | 15 |
|
Adauga |
| 0120 06 13 | 6 | R1/4 | 14 | 31 | 15 |
|
Adauga |
| 0120 08 10 | 8 | R1/8 | 11 | 28,5 | 17 |
|
Adauga |
| 0120 08 13 | 8 | R1/4 | 14 | 33 | 17 |
|
Adauga |
| 0120 08 17 | 8 | R3/8 | 17 | 33,5 | 17 |
|
Adauga |
| 0120 10 13 | 10 | R1/4 | 14 | 36 | 20 |
|
Adauga |
| 0120 10 17 | 10 | R3/8 | 17 | 36,5 | 20 |
|
Adauga |
| 0120 10 21 | 10 | R1/2 | 22 | 41 | 20 |
|
Adauga |
| 0120 12 13 | 12 | R1/4 | 14 | 36 | 20 |
|
Adauga |
| 0120 12 17 | 12 | R3/8 | 17 | 36,5 | 20 |
|
Adauga |
| 0120 12 21 | 12 | R1/2 | 22 | 41 | 20 |
|
Adauga |
| 0120 14 17 | 14 | R3/8 | 17 | 38 | 21,5 |
|
Adauga |
| 0120 14 21 | 14 | R1/2 | 22 | 42,5 | 21,5 |
|
Adauga |
| 0120 15 17 | 15 | R3/8 | 17 | 38 | 21,5 |
|
Adauga |
| 0120 15 21 | 15 | R1/2 | 22 | 42,5 | 21,5 |
|
Adauga |
| 0120 16 17 | 16 | R3/8 | 17 | 39,5 | 23 |
|
Adauga |
| 0120 16 21 | 16 | R1/2 | 22 | 44 | 23 |
|
Adauga |
| 0120 18 21 | 18 | R1/2 | 22 | 44,5 | 23,5 |
|
Adauga |
| 0120 18 27 | 18 | R3/4 | 27 | 47,5 | 23,5 |
|
Adauga |
| 0120 20 27 | 20 | R3/4 | 27 | 49 | 25 |
|
Adauga |
| 0120 22 27 | 22 | R3/4 | 27 | 48,5 | 25,5 |
|
Adauga |
| 0120 22 34 | 22 | R1 | 36 | 52,5 | 25,5 |
|
Adauga |
| 0120 28 34 | 28 | R1 | 36 | 57 | 30 |
|
Adauga |
