Racord drept alama, filet exterior BSPP sau metric
Tip produs: 0101
Presiune maxima de lucru: 550 bar
Temperatura: -40⁰C ... +100⁰C
Vacuum: 755 mmHg

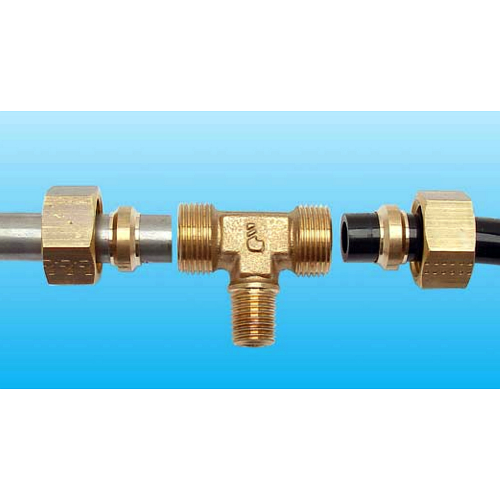

Fitting de compresie din alama, drept, cu filet exterior paralel, pentru tub sau teava.
- disponibil pentru tub/teava cu diametru exterior de la 4 mm pana la 28 mm
- Conformitate : ROHS
- Presiune maxima de lucru : 550 bar
- Temperatura minima de lucru : -40 ⁰C
- Temperatura maxima de lucru : 100 ⁰C
- Vacuum : 755 mmHg

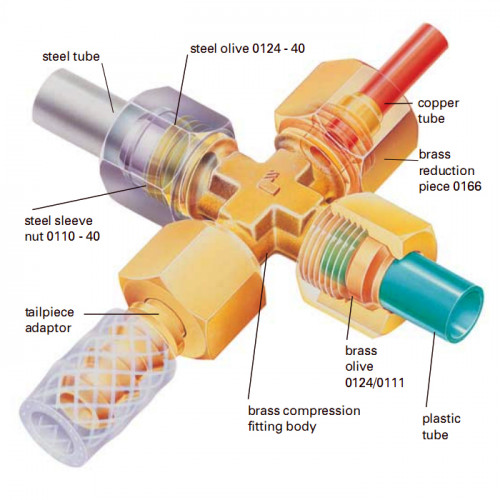

- Corp : alama
- Piulita : alama
- Garnitura : polimer tehnic
- Inel strangere : alama
- Catalog fitinguri compresie alama : Deschide

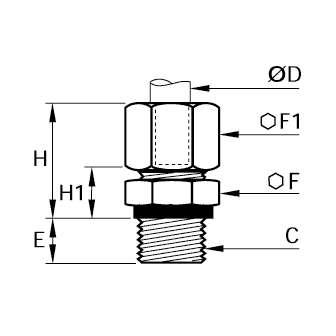

| Cod | ØD mm | C | E mm | F mm | F1 mm | H max mm | H1 mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 0101 04 10 | 4 | G1/8 | 6,5 | 13 | 10 | 16,5 | 8 |
|
Adauga |
| 0101 04 19 | 4 | M5x0,8 | 5 | 10 | 10 | 16,5 | 8 |
|
Adauga |
| 0101 05 10 | 5 | G1/8 | 6,5 | 13 | 12 | 17,5 | 8,5 |
|
Adauga |
| 0101 06 10 | 6 | G1/8 | 6,5 | 13 | 13 | 18 | 8,5 |
|
Adauga |
| 0101 06 13 | 6 | G1/4 | 8 | 17 | 13 | 18 | 9,5 |
|
Adauga |
| 0101 08 10 | 8 | G1/8 | 6,5 | 13 | 14 | 19 | 8,5 |
|
Adauga |
| 0101 08 13 | 8 | G1/4 | 8 | 17 | 14 | 19,5 | 9 |
|
Adauga |
| 0101 08 17 | 8 | G3/8 | 11 | 22 | 14 | 20 | 10,5 |
|
Adauga |
| 0101 10 13 | 10 | G1/4 | 8 | 17 | 19 | 24 | 11 |
|
Adauga |
| 0101 10 17 | 10 | G3/8 | 11 | 22 | 19 | 24 | 11,5 |
|
Adauga |
| 0101 12 13 | 12 | G1/4 | 8 | 19 | 22 | 24 | 11 |
|
Adauga |
| 0101 12 17 | 12 | G3/8 | 11 | 22 | 22 | 24 | 11,5 |
|
Adauga |
| 0101 12 21 | 12 | G1/2 | 12 | 27 | 22 | 24 | 12 |
|
Adauga |
| 0101 14 17 | 14 | G3/8 | 11 | 22 | 24 | 25 | 10,5 |
|
Adauga |
| 0101 14 21 | 14 | G1/2 | 12 | 27 | 24 | 25 | 11 |
|
Adauga |
| 0101 15 17 | 15 | G3/8 | 11 | 22 | 24 | 25 | 10,5 |
|
Adauga |
| 0101 15 21 | 15 | G1/2 | 12 | 27 | 24 | 25 | 11 |
|
Adauga |
| 0101 16 17 | 16 | G3/8 | 11 | 22 | 27 | 27 | 12 |
|
Adauga |
| 0101 16 21 | 16 | G1/2 | 12 | 27 | 27 | 27 | 12,5 |
|
Adauga |
| 0101 18 21 | 18 | G1/2 | 12 | 27 | 30 | 29,5 | 12,5 |
|
Adauga |
| 0101 18 27 | 18 | G3/4 | 13 | 32 | 30 | 29,5 | 13 |
|
Adauga |
| 0101 20 27 | 20 | G3/4 | 13 | 32 | 32 | 31 | 13 |
|
Adauga |
| 0101 22 27 | 22 | G3/4 | 13 | 32 | 36 | 32 | 13 |
|
Adauga |
| 0101 22 34 | 22 | G1 | 15 | 41 | 36 | 31 | 13,5 |
|
Adauga |
| 0101 28 34 | 28 | G1 | 15 | 41 | 42 | 35,5 | 13,5 |
|
Adauga |
