Racord drept alama, prelungitor
Tip produs: 0106
Presiune maxima de lucru: 550 bar
Temperatura: -40⁰C ... +250⁰C
Vacuum: 755 mmHg
Fitting prelungitor de compresie din alama, pentru tub sau teava.
- Conformitate : ROHS
- Presiune maxima de lucru : 550 bar
- Temperatura minima de lucru : -40 ⁰C
- Temperatura maxima de lucru : 250 ⁰C
- Vacuum : 755 mmHg
- Corp : alama
- Piulita : alama
- Inel strangere : alama
- Catalog fitinguri compresie alama : Deschide

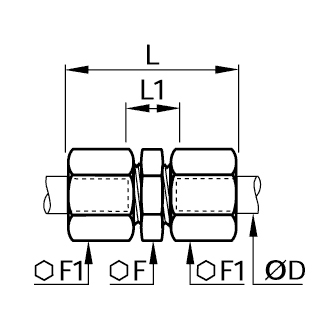

| Cod | ØD mm | F mm | F1 mm | L max mm | L1 mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|
| 0106 04 00 | 4 | 10 | 10 | 28 | 10 |
|
Adauga |
| 0106 05 00 | 5 | 11 | 12 | 31 | 11 |
|
Adauga |
| 0106 06 00 | 6 | 11 | 13 | 32 | 11 |
|
Adauga |
| 0106 08 00 | 8 | 13 | 14 | 36 | 10 |
|
Adauga |
| 0106 10 00 | 10 | 17 | 19 | 42 | 13 |
|
Adauga |
| 0106 12 00 | 12 | 19 | 22 | 42 | 13 |
|
Adauga |
| 0106 14 00 | 14 | 22 | 24 | 45 | 11 |
|
Adauga |
| 0106 15 00 | 15 | 22 | 24 | 45 | 11 |
|
Adauga |
| 0106 16 00 | 16 | 24 | 27 | 48 | 13 |
|
Adauga |
| 0106 18 00 | 18 | 27 | 30 | 53 | 14 |
|
Adauga |
| 0106 20 00 | 20 | 30 | 32 | 56 | 14 |
|
Adauga |
| 0106 22 00 | 22 | 32 | 36 | 60 | 14 |
|
Adauga |
| 0106 28 00 | 28 | 41 | 42 | 64 | 14 |
|
Adauga |
