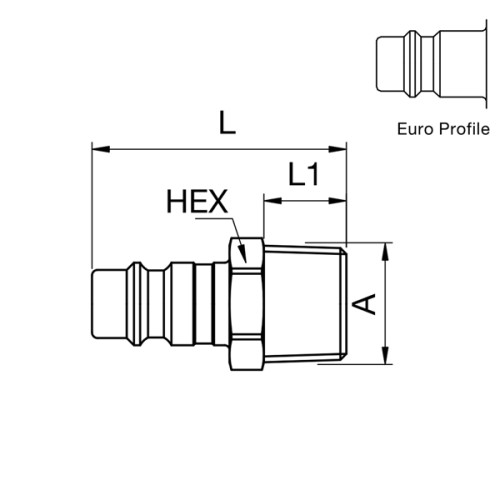

Cupla rapida tata, seria 25, filet exterior
Profil standard industrial European
Seria 25, Diametru nominal DN 7,8
single shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C
Cupla rapida tata, seria 25, otel zincat, cu filet exterior, fara supapa de inchidere.
Informatii de la producator
Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625)
Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).
Parker’s Series 25 is industrial coupling with European profile. Coupling system with single-hand operation. High flow valve for optimum flow and low pressure drops. Series stands out for its robust design and long service life even with the harshest use.
Parker’s Series 1600 and 1625 are industrial coupling with European profile. Coupling system with single-hand operation. Suitable for compressed air application with greater than average air consumption. Ultra-High flow valve for optimum flow and low pressure drop. Extremely robust and ergonomically shaped (series 1625)
Markets:
Series 25 - Electronics and Energy Management
- Tranportation
- Life Science
- Industrial
Series 1600 and 1625 - Electronics and Energy Management
- Transportation
- Industrial
Features/Benefits:
- Industrial coupling with European profile, most representative profile worldwide
- Single-hand operation for easy and fast connection
- High-Flow and Ultra High-Flow valve for optimum flow and low pressure drop
| Brand | Parker |
| Brand | Rectus |
| Division | Low Pressure Connectors Europe Division |
| Industry | General Industrial |
| Industry | Transportation |
| Industry | Electronics |
| Industry | Healthcare & Life Sciences |
| Application | Energy Management |
| Application | Air & Gas Compressor |
| Application | Industrial Machinery |
| Application | Pharma |
| Application | Electronics |
| Application | Mobile & Defence |
| Application | Trucks & Trailers |
| Technology | Pneumatics |
| Technology | Fluid & Gas Handling |
| Product Type | Pneumatic Quick Couplings |
| Product Style | Quick-Connect |
| Product Series | Series 25 |
| Maximum Operating Pressure | up to 35 bar |
| Maximum Operating Pressure | up to 507 psi |
| Connection Type | Male |
| Connection Type | BSPT DIN 2999 Tapered |
| Connection Size | R 1/8 |
| Maximum Operating Temperature | up to 240 °C |
| Maximum Operating Temperature | up to 464 °F |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Temperature | -40 °F |
| For Fluid Type | Chemical Fluids |
| For Fluid Type | Gases |
| For Fluid Type | Water |
| For Fluid Type | Air |
| For Fluid Type | Compressed Air |
| Flow Rate | 1800 L/min (air) |
| Flow Rate | 28 L/min (water) |
| Body Material | Steel |
| Seal Material | Without Seal |
| Interchange Type | European Profile |
| Coupling Half | Plug |
| Compatible Fitting | Series 25 Coupler |
| Compatible Fitting | Series 1600 Coupler |
| Compatible Fitting | Series 1625 Coupler |
| Valve Type | Without Valve |
| Function | Straight-Through |
| Operation Type | Sleeve |
| Plating Type | Zinc-plated |
| Diameter | 7.8 mm (nominal) |
| Hex Size | 13 mm |
| Specifications Met | ATEX |
| Specifications Met | RoHS |
| Weight | 0.013 kg |
| Length | 33 mm |
| Quantity per Box | 10 |
| Region of Origin | Germany |
| Valve Included | No |
| Shape | Straight |
| Customer information about test reports and inspection certificates | view |
| Safety instructions - Quick Connect Couplings | view |
| Data Center Liquid Cooling Solutions & Technologies. | view |
| Instructions for use for explosive areas (ATEX) | view |
| Catalogue Page Parker Rectus Series 25 Brass/Steel | view |
| Catalogue Page Parker Rectus Series 25 Stainless Steel | view |
| Datasheet Series 25 Single-Shut-Off Version | view |
| Datasheet Series 25 Double-Shut-Off Version | view |
| Statement to EC Machinery Directive 2006/42/EC | view |
| Inventor of push-in fittings and market leader in quick couplings, Parker Legris Rectus has a reputed experience in fluid transfer for production automation, transportation, food processing, thermal management and medical applications. | view |
| Declaration Regarding Regulation (EC) No. 1907/2006 of the European Parliament and the Council Dated 18 December 2006 Concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Published on 30 December 2006 in the Official Journal of the European Union 396/1. | view |
| Discover with this video the Parker LPCE quick connection solutions for liquid cooling circuit required in electrical devices. This video shows how rigid piping, quick coupling and push-in fittings can meet the requirements of thermal management in the power generation applications, such as Lithium-ion (Li-ion) batteries, Energy Storage Systems (ESS), Inverters, Rectifiers, Converters, Power Conversion Systems (PCS), Medium Voltage Drives and Variable Frequency Drives. | view |
| Declaration of conformity - DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 8 June 2011on the restriction of the use of certain hazardous substances in electrical and electronic equipment | view |
| Discover with this video the Parker LPCE quick connection solutions for Thermal Management in electronic applications.\rThis video shows how rigid piping, quick coupling and push-in fittings meet the requirements of liquid cooling circuits in electronic applications, such as Data Centres, Supercomputers, Electronic devices and Semiconductor production\r | view |
| Datasheet Series 25 DryBreak Version | view |
| 25SFAK10SXZ | Part Solutions |
