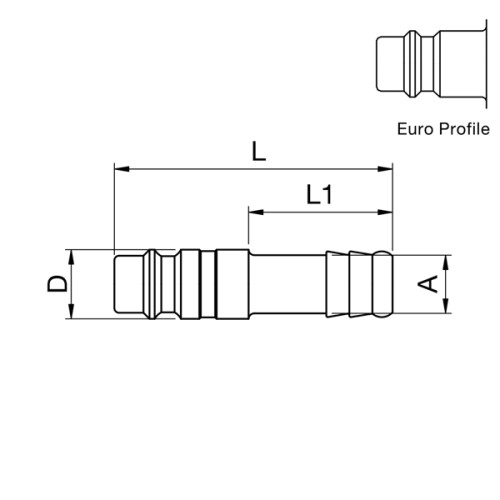

Cupla rapida tata, seria 25, cu stut
Tip produs: 26KP-25SFTF
Profil standard industrial European
Seria 25, Diametru nominal DN 7,8
single shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C
Cupla rapida tata, seria 25, otel zincat, cu stut pentru furtun, fara supapa de inchidere.
Informatii de la producator
European Interchange, High Flow, Quick Connect Air Couplings - Rectus 25 Series
Rectus 25 Series steel nipple with hose barb
25 Rectus Series Quick Connect Air Couplings, up to 300 psi, are interchangeable with common High Flow European couplings. Parker's rapid flow couplers are push-to-connect and single shut off.
Rectus 25 Series functionally interchanges with CEJN 320.
Flow rates on the 1/4" size are greater than many 3/8" size nipples. The increased flow results in greater tool efficiency and decreased air costs.
High flow nipples are also used on breathing air lines and respirator equipment used in paint booths, chemical laboratories and similar environments.
Technical Characteristics:
• Sizes: 1/4”
• Material: Steel (Nipples), Nickel Plated Brass (Couplers)
• Port Ends: Female NPTF, Male NPTF, Standard Hose Barb, Push-Lok Hose Barb
Markets:
• Industrial
• Construction
• Automotive service and repair
• Factory automation
• Environmental health and safety
Features/Benefits:
• High flow performance. Up to 2-1/2 times larger flow area than standard industrial interchange nipples, resulting in greater tool efficiency and decreased air costs.
• Case hardened steel for durability
• Interchangeable with high flow European profile nipples
Applications:
• Safety equipment, respirators
• Air compressors
• Pneumatic air tools and hoses
• Water lines
• Grease guns
• Cleaning equipment
• Paint applicators
• Drop-down air lines
• Blow guns
Rectus 25 Series functionally interchanges with CEJN 320.
Flow rates on the 1/4" size are greater than many 3/8" size nipples. The increased flow results in greater tool efficiency and decreased air costs.
High flow nipples are also used on breathing air lines and respirator equipment used in paint booths, chemical laboratories and similar environments.
Technical Characteristics:
• Sizes: 1/4”
• Material: Steel (Nipples), Nickel Plated Brass (Couplers)
• Port Ends: Female NPTF, Male NPTF, Standard Hose Barb, Push-Lok Hose Barb
Markets:
• Industrial
• Construction
• Automotive service and repair
• Factory automation
• Environmental health and safety
Features/Benefits:
• High flow performance. Up to 2-1/2 times larger flow area than standard industrial interchange nipples, resulting in greater tool efficiency and decreased air costs.
• Case hardened steel for durability
• Interchangeable with high flow European profile nipples
Applications:
• Safety equipment, respirators
• Air compressors
• Pneumatic air tools and hoses
• Water lines
• Grease guns
• Cleaning equipment
• Paint applicators
• Drop-down air lines
• Blow guns
| Maximum Operating Temperature | 212.0 °F |
| Minimum Operating Temperature | -4.0 °F |
| Maximum Operating Pressure | 300 psi |
| Body Material | Steel |
| Plating Type | Zinc with clear trivalent chromate |
| Interchange Type | European High Flow |
| Media | Low pressure fluids and compressed air |
| Application | Air |
| Valve Type | Unvalved |
| Division | Quick Coupling Division |
