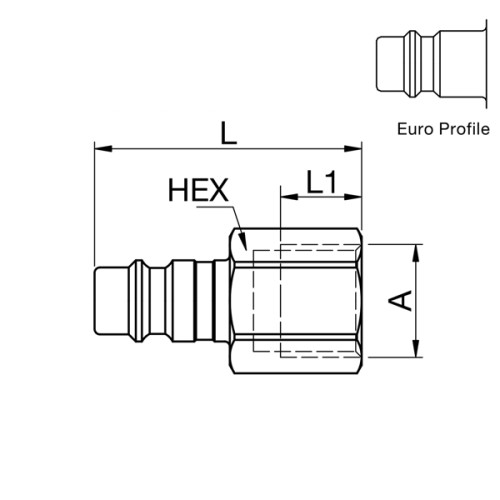

Cupla rapida tata, seria 25, filet interior
Profil standard industrial European
Seria 25, Diametru nominal DN 7,8
single shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C
Cupla rapida tata, seria 25, otel zincat, cu filet interior, fara supapa de inchidere.
Informatii de la producator
Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625)
Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).
Parker’s Series 25 is industrial coupling with European profile. Coupling system with single-hand operation. High flow valve for optimum flow and low pressure drops. Series stands out for its robust design and long service life even with the harshest use.
Parker’s Series 1600 and 1625 are industrial coupling with European profile. Coupling system with single-hand operation. Suitable for compressed air application with greater than average air consumption. Ultra-High flow valve for optimum flow and low pressure drop. Extremely robust and ergonomically shaped (series 1625)
Markets:
Series 25 - Electronics and Energy Management
- Tranportation
- Life Science
- Industrial
Series 1600 and 1625 - Electronics and Energy Management
- Transportation
- Industrial
Features/Benefits:
- Industrial coupling with European profile, most representative profile worldwide
- Single-hand operation for easy and fast connection
- High-Flow and Ultra High-Flow valve for optimum flow and low pressure drop
| Brand | Parker |
| Brand | Rectus |
| Division | Low Pressure Connectors Europe Division |
| Industry | General Industrial |
| Industry | Transportation |
| Industry | Electronics |
| Industry | Healthcare & Life Sciences |
| Application | Energy Management |
| Application | Air & Gas Compressor |
| Application | Industrial Machinery |
| Application | Pharma |
| Application | Electronics |
| Application | Mobile & Defence |
| Application | Trucks & Trailers |
| Technology | Pneumatics |
| Technology | Fluid & Gas Handling |
| Product Type | Pneumatic Quick Couplings |
| Product Style | Quick-Connect |
| Product Series | Series 25 |
| Maximum Operating Pressure | up to 35 bar |
| Maximum Operating Pressure | up to 507 psi |
| Connection Type | Female |
| Connection Type | BSPP ISO 228 Parallel |
| Connection Size | G 1/8 |
| Maximum Operating Temperature | up to 240 °C |
| Maximum Operating Temperature | up to 464 °F |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Temperature | -40 °F |
| For Fluid Type | Chemical Fluids |
| For Fluid Type | Gases |
| For Fluid Type | Water |
| For Fluid Type | Air |
| For Fluid Type | Compressed Air |
| Flow Rate | 1800 L/min (air) |
| Flow Rate | 28 L/min (water) |
| Body Material | Steel |
| Seal Material | Without Seal |
| Interchange Type | European Profile |
| Coupling Half | Plug |
| Compatible Fitting | Series 25 Coupler |
| Compatible Fitting | Series 1600 Coupler |
| Compatible Fitting | Series 1625 Coupler |
| Valve Type | Without Valve |
| Function | Straight-Through |
| Operation Type | Sleeve |
| Plating Type | Zinc-plated |
| Diameter | 7.8 mm (nominal) |
| Hex Size | 14 mm |
| Specifications Met | ATEX |
| Specifications Met | RoHS |
| Weight | 0.0156 kg |
| Length | 30 mm |
| Quantity per Box | 10 |
| Region of Origin | Germany |
| Valve Included | No |
| Shape | Straight |
