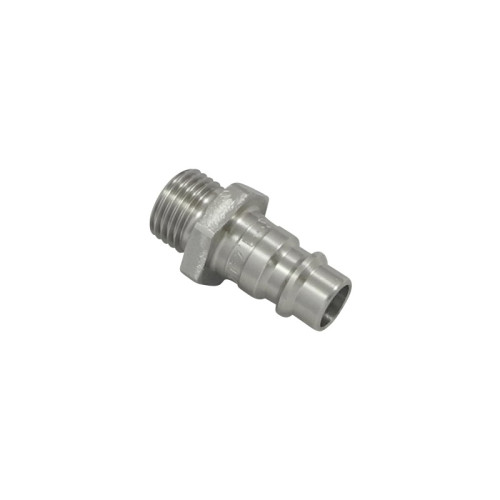

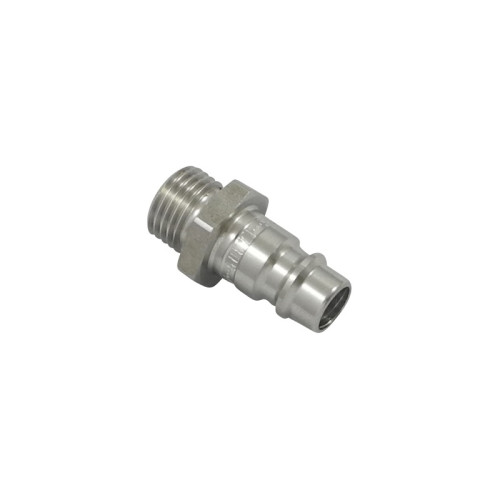

Cupla rapida tata, seria 25 inox, filet exterior
Tip produs: 25SFAW-inox
Profil standard European
Seria 25 inox, Diametru nominal DN 7,4
single shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -15⁰C ... +200⁰C
Cupla rapida tata, seria 25 inox, AISI 303 / AISI 316L, cu filet exterior

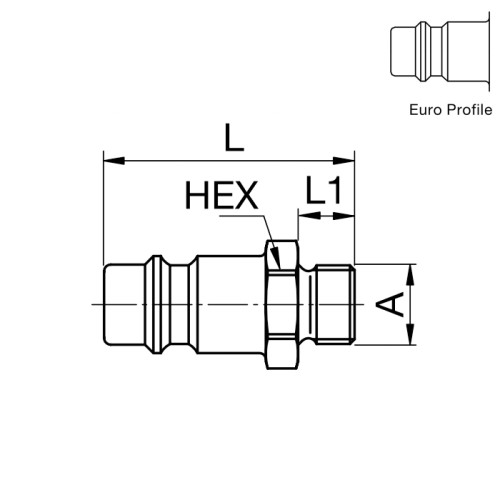

| Cod | Cod Legris | A | HEX mm | L mm | L1 mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 25SFAW10RXX | G1/8 | 14 | 31 | 7 | AISI 303 |
|
Adauga | |
| 25SFAW13RXX | G1/4 | 17 | 33 | 9 | AISI 303 |
|
Adauga | |
| 25SFAW13EXX | G1/4 | 17 | 33 | 9 | AISI 316L |
|
Adauga | |
| 25SFAW17RXX | G3/8 | 19 | 33 | 9 | AISI 303 |
|
Adauga | |
| 25SFAW17EXX | G3/8 | 19 | 33 | 9 | AISI 316L |
|
Adauga | |
| 25SFAW21RXX | G1/2 | 24 | 38 | 12 | AISI 303 |
|
Adauga | |
| 25SFAW21EXX | 9087X25 21 | G1/2 | 24 | 38 | 12 | AISI 316L |
|
Adauga |
