Cupla rapida tata, seria 25 inox, filet exterior
Tip produs: 25SBAW-inox
Profil standard European
Seria 25 inox, Diametru nominal DN 7,4
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -15⁰C ... +200⁰C
Cupla rapida tata, seria 25 inox, AISI 303 / AISI 316L, cu filet exterior si supapa pentru inchidere dubla

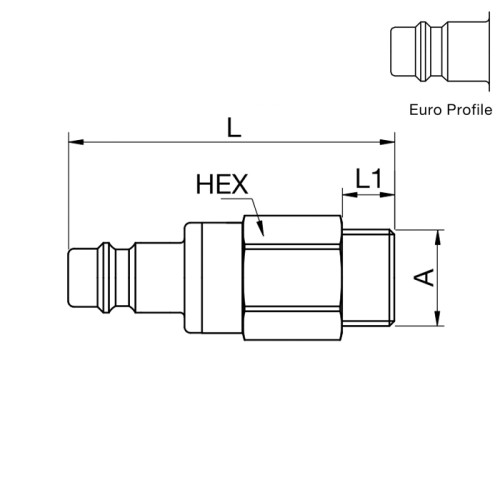

| Cod | Cod Legris | A | HEX mm | L mm | L1 mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 25SBAW13RVX | G1/4 | 19 | 58 | 10,5 | AISI 303 |
|
Adauga | |
| 25SBAW13EVX | 9287X25 13 | G1/4 | 19 | 58 | 10,5 | AISI 316L |
|
Adauga |
| 25SBAW17RVX | G3/8 | 19 | 56 | 9 | AISI 303 |
|
Adauga | |
| 25SBAW17EVX | 9287X25 17 | G3/8 | 19 | 56 | 9 | AISI 316L |
|
Adauga |
| 25SBAW21RVX | G1/2 | 24 | 59 | 12 | AISI 303 |
|
Adauga | |
| 25SBAW21EVX | 9287X25 21 | G1/2 | 24 | 59 | 12 | AISI 316L |
|
Adauga |
