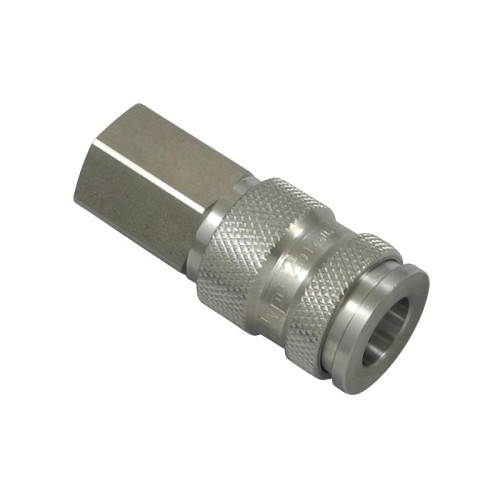

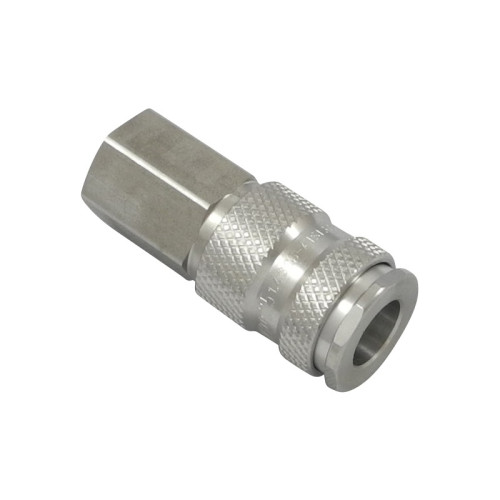

Cupla rapida mama, seria 25 inox, filet interior
Tip produs: 25KBIW-inox
Profil standard European
Seria 25 inox, Diametru nominal DN 7,4
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -15⁰C ... +200⁰C
Cupla rapida mama, seria 25 inox, AISI 303 / AISI 316L, cu filet interior si supapa pentru inchidere dubla.

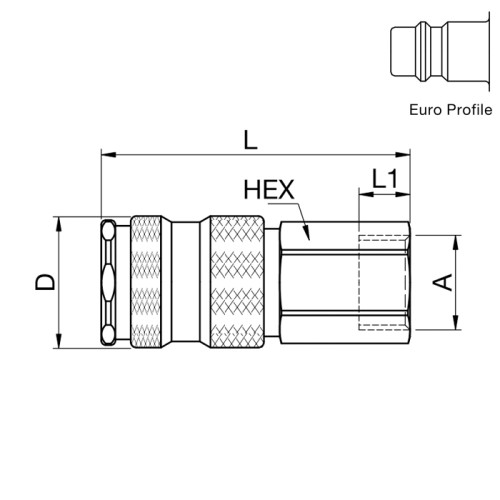

| Cod | Cod Legris | A | HEX mm | L mm | L1 mm | ØD mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 25KBIW13RVX | G1/4 | 19 | 56 | 10, | 23 | AISI 303 |
|
Adauga | |
| 25KBIW13EVX | 9201X25 13 | G1/4 | 19 | 56 | 10 | 23 | AISI 316L |
|
Adauga |
| 25KBIW17RVX | G3/8 | 19 | 55 | 9 | 23 | AISI 303 |
|
Adauga | |
| 25KBIW17EVX | 9201X25 17 | G3/8 | 19 | 55 | 9 | 23 | AISI 316L |
|
Adauga |
| 25KBIW21RVX | G1/2 | 24 | 58 | 12 | 23 | AISI 303 |
|
Adauga | |
| 25KBIW21EVX | 9201X25 21 | G1/2 | 24 | 58 | 12 | 23 | AISI 316L |
|
Adauga |
