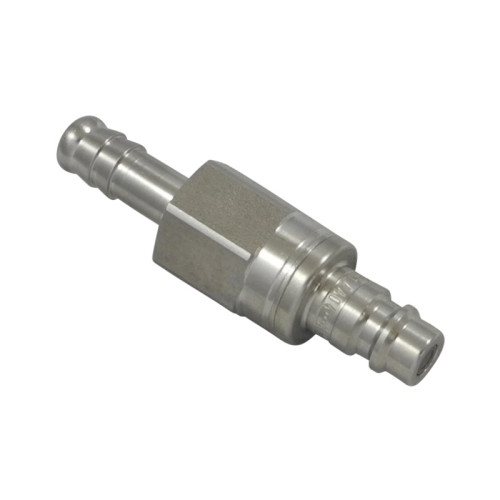

Cupla rapida tata, seria 25 inox, cu stut
Tip produs: 25SBTF-inox
Profil standard European
Seria 25 inox, Diametru nominal DN 7,4
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -15⁰C ... +200⁰C
Cupla rapida tata, seria 25 inox, AISI 303 / AISI 316L, cu stut pentru furtun si supapa pentru inchidere dubla

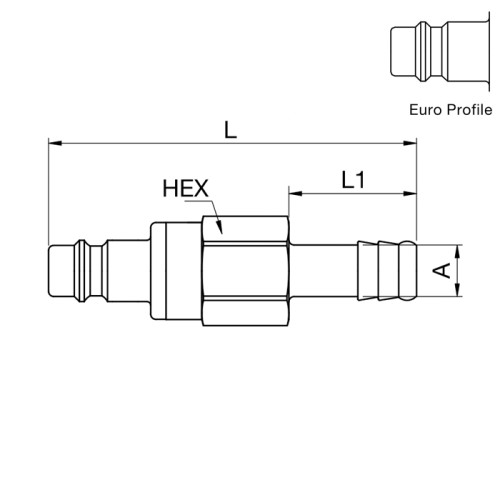

| Cod | A | HEX mm | L mm | L1 mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|
| 25SBTF06RVX | 6 | 19 | 72 | 25 | AISI 303 |
|
Adauga |
| 25SBTF06EVX | 6 | 19 | 72 | 25 | AISI 316L |
|
Adauga |
| 25SBTF08RVX | 8 | 19 | 72 | 25 | AISI 303 |
|
Adauga |
| 25SBTF08EVX | 8 | 19 | 72 | 25 | AISI 316L |
|
Adauga |
| 25SBTF09RVX | 9 | 19 | 72 | 25 | AISI 303 |
|
Adauga |
| 25SBTF09EVX | 9 | 19 | 72 | 25 | AISI 316L |
|
Adauga |
| 25SBTF10RVX | 10 | 19 | 72 | 25 | AISI 303 |
|
Adauga |
| 25SBTF10EVX | 10 | 19 | 72 | 25 | AISI 316L |
|
Adauga |
| 25SBTF13RVX | 13 | 19 | 72 | 25 | AISI 303 |
|
Adauga |
| 25SBTF13EVX | 13 | 19 | 72 | 25 | AISI 316L |
|
Adauga |
