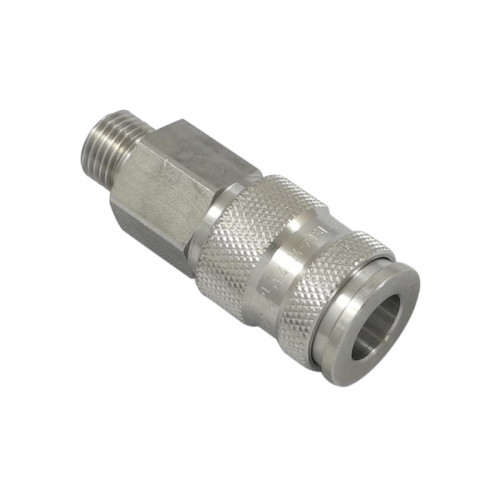

Cupla rapida mama, seria 25 inox, filet exterior
Tip produs: 25KBAW-inox
Profil standard European
Seria 25 inox, Diametru nominal DN 7,4
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -15⁰C ... +200⁰C
Cupla rapida mama, seria 25 inox, AISI 303 / AISI 316L, cu filet exterior si supapa pentru inchidere dubla.

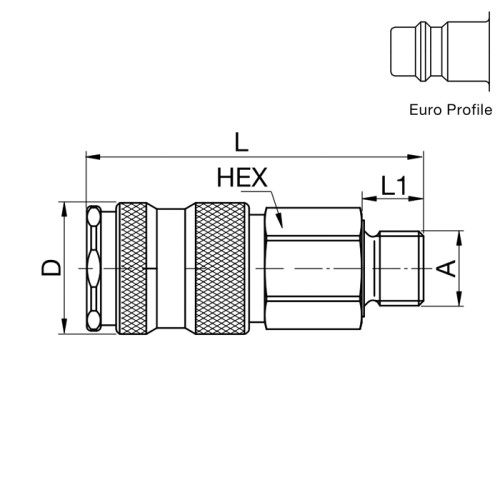

| Cod | Cod Legris | A | HEX mm | L mm | L1 mm | ØD mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 25KBAW13RVX | G1/4 | 19 | 60 | 10,5 | 23 | AISI 303 |
|
Adauga | |
| 25KBAW13EVX | 9201X25 13 | G1/4 | 19 | 60 | 10,5 | 23 | AISI 316L |
|
Adauga |
| 25KBAW17RVX | G3/8 | 19 | 58 | 9 | 23 | AISI 303 |
|
Adauga | |
| 25KBAW17EVX | 9201X25 17 | G3/8 | 19 | 58 | 9 | 23 | AISI 316L |
|
Adauga |
| 25KBAW21RVX | G1/2 | 24 | 61 | 12 | 23 | AISI 303 |
|
Adauga | |
| 25KBAW21EVX | 9201X25 21 | G1/2 | 24 | 61 | 12 | 23 | AISI 316L |
|
Adauga |
