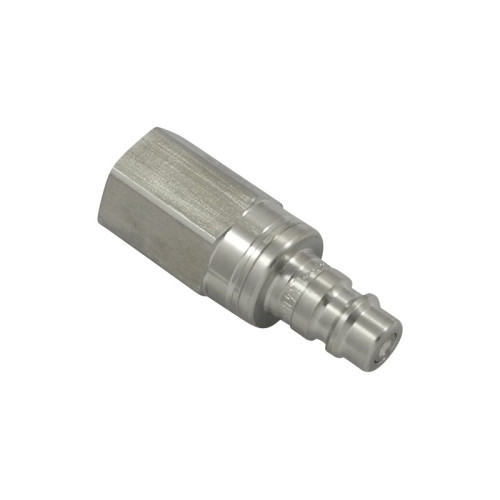

Cupla rapida tata, seria 25 inox, filet interior
Tip produs: 25SBIW-inox
Profil standard European
Seria 25 inox, Diametru nominal DN 7,4
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -15⁰C ... +200⁰C
Cupla rapida tata, seria 25 inox, AISI 303 / AISI 316L, cu filet interior si supapa pentru inchidere dubla

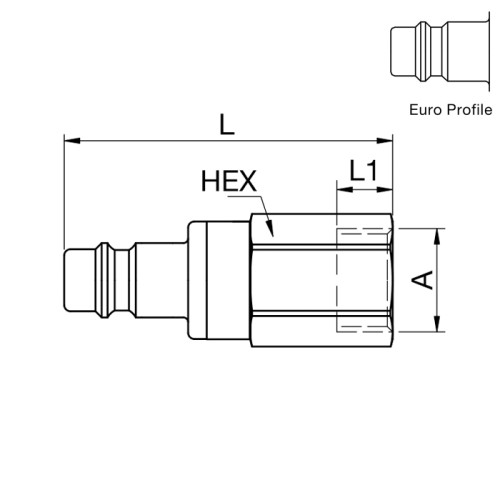

| Cod | Cod Legris | A | HEX mm | L mm | L1 mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 25SBIW13RVX | G1/4 | 19 | 54 | 10 | AISI 303 |
|
Adauga | |
| 25SBIW13EVX | 9286X25 13 | G1/4 | 19 | 54 | 10 | AISI 316L |
|
Adauga |
| 25SBIW17RVX | G3/8 | 19 | 53 | 9 | AISI 303 |
|
Adauga | |
| 25SBIW17EVX | 9286X25 17 | G3/8 | 19 | 53 | 9 | AISI 316L |
|
Adauga |
| 25SBIW21RVX | G1/2 | 24 | 56 | 12 | AISI 303 |
|
Adauga | |
| 25SBIW21EVX | G1/2 | 24 | 56 | 12 | AISI 316L |
|
Adauga |
