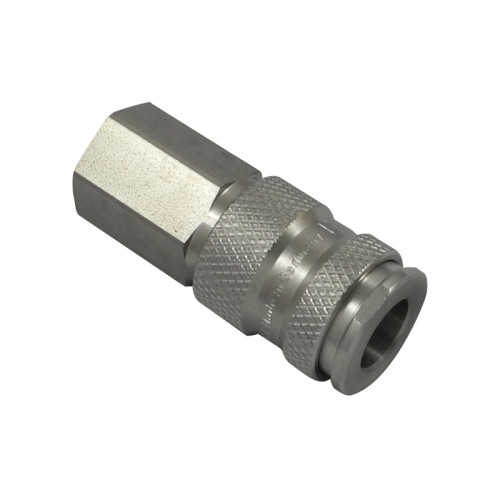

Cupla rapida mama, seria 25 inox, filet interior
Tip produs: 25KAIW-inox
Profil standard European
Seria 25 inox, Diametru nominal DN 7,4
single shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -15⁰C ... +200⁰C
Cupla rapida mama, seria 25 inox, AISI 303 / AISI 316L, cu filet interior si supapa pentru inchidere simpla.

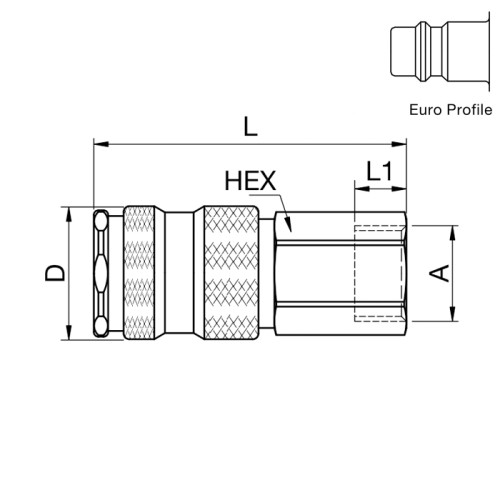

| Cod | A | HEX mm | L mm | L1 mm | ØD mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 25KAIW13RVX | G1/4 | 19 | 56 | 10 | 23 | AISI 303 |
|
Adauga |
| 25KAIW13EVX | G1/4 | 19 | 56 | 10 | 23 | AISI 316L |
|
Adauga |
| 25KAIW17RVX | G3/8 | 19 | 55 | 9 | 23 | AISI 303 |
|
Adauga |
| 25KAIW17EVX | G3/8 | 19 | 55 | 9 | 23 | AISI 316L |
|
Adauga |
| 25KAIW21RVX | G1/2 | 24 | 58 | 12 | 23 | AISI 303 |
|
Adauga |
| 25KAIW21EVX | G1/2 | 24 | 58 | 12 | 23 | AISI 316L |
|
Adauga |
