Cupla rapida tata, seria 21, de panou, cu stut
Tip produs: 21SBTS
Profil standard European
Seria 21, Diametru nominal DN 5
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C

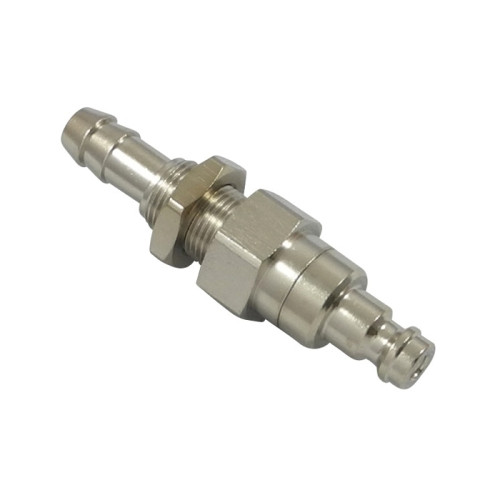

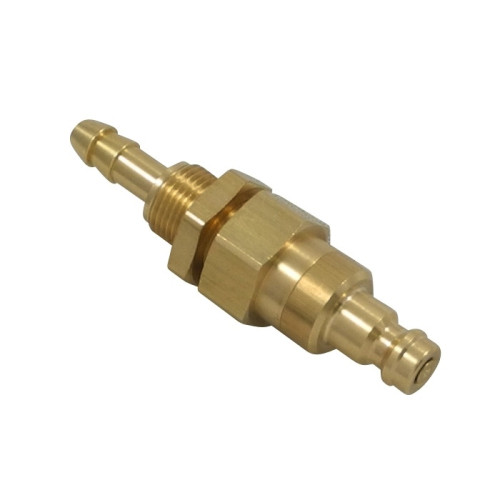

Cupla rapida tata, seria 21, alama sau alama nichelata, cu piulita de montare pe panou, stut pentru furtun si supapa pentru inchidere dubla

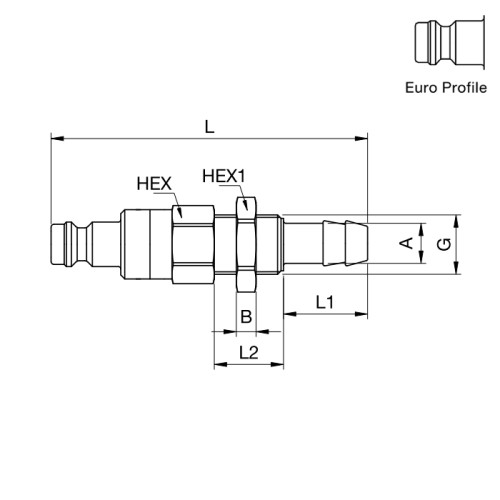

| Cod | A | HEX mm | HEX1 mm | B mm | G | L mm | L1 mm | L2 mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 21SBTS04MPX | 4 | 14 | 14 | 3 | M10x1 | 64 | 17 | 14 | alama |
|
Adauga |
| 21SBTS04MPN | 4 | 14 | 14 | 3 | M10x1 | 64 | 17 | 14 | alama nichelata |
|
Adauga |
| 21SBTS05MPX | 5 | 14 | 14 | 4 | M10x1 | 64 | 17 | 14 | alama |
|
Adauga |
| 21SBTS05MPN | 5 | 14 | 14 | 4 | M10x1 | 64 | 17 | 14 | alama nichelata |
|
Adauga |
| 21SBTS06MPX | 6 | 14 | 17 | 4 | M12x1 | 64 | 17 | 14 | alama |
|
Adauga |
| 21SBTS06MPN | 6 | 14 | 17 | 4 | M12x1 | 64 | 17 | 14 | alama nichelata |
|
Adauga |
| 21SBTS08MPX | 8 | 14 | 17 | 4 | M12x1 | 64 | 17 | 14 | alama |
|
Adauga |
| 21SBTS08MPN | 8 | 14 | 17 | 4 | M12x1 | 64 | 17 | 14 | alama nichelata |
|
Adauga |
| 21SBTS10MPX | 10 | 14 | 19 | 4 | M14x1 | 64 | 17 | 14 | alama |
|
Adauga |
| 21SBTS10MPN | 10 | 14 | 19 | 4 | M14x1 | 64 | 17 | 14 | alama nichelata |
|
Adauga |
