Cupla rapida tata, seria 21, filet exterior
Tip produs: 21SFA
Profil standard European
Seria 21, Diametru nominal DN 5
single shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C

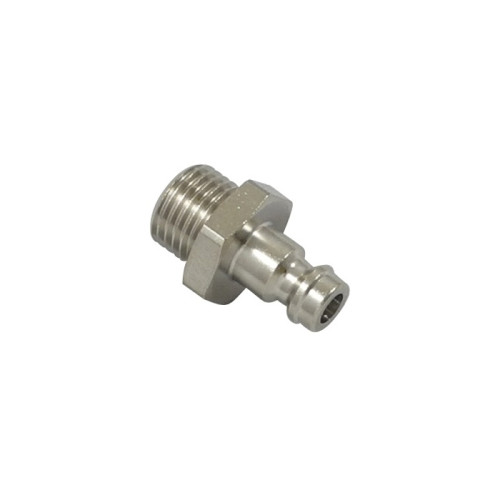

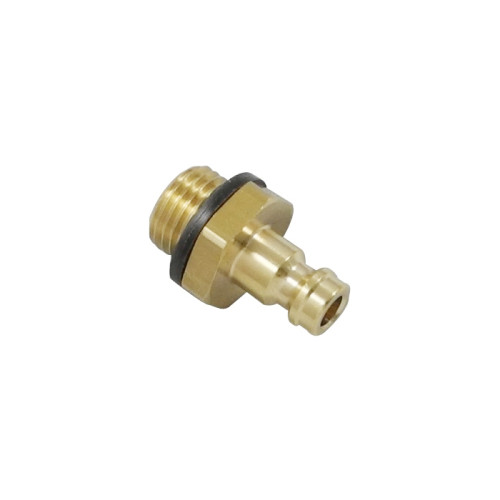

Cupla rapida tata, seria 21, alama sau alama nichelata, cu filet exterior

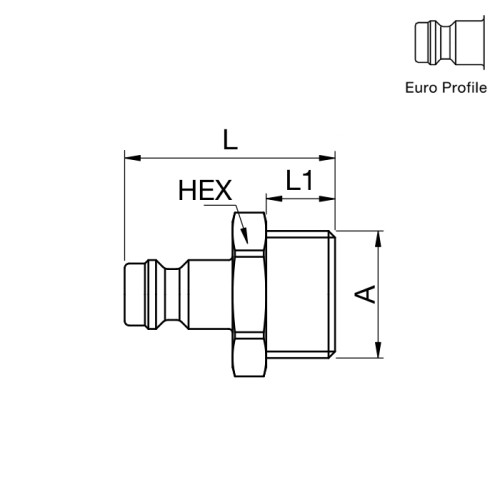

| Cod | Cod Legris | A | HEX mm | L mm | L1 mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 21SFAW10MXX | G1/8 | 14 | 25 | 7 | alama |
|
Adauga | |
| 21SFAW10MXN | 9087 21 10 | G1/8 | 14 | 25 | 7 | alama nichelata |
|
Adauga |
| 21SFAW13MXX | G1/4 | 17 | 28 | 9 | alama |
|
Adauga | |
| 21SFAW13MXN | 9087 21 13 | G1/4 | 17 | 28 | 9 | alama nichelata |
|
Adauga |
| 21SFAW17MXX | G3/8 | 19 | 28 | 9 | alama |
|
Adauga | |
| 21SFAW17MXN | G3/8 | 19 | 28 | 9 | alama nichelata |
|
Adauga | |
| 21SFAD10MXX | M10x1 | 14 | 26 | 8 | alama |
|
Adauga | |
| 21SFAD10MXN | M10x1 | 14 | 26 | 8 | alama nichelata |
|
Adauga | |
| 21SFAD12MXX | M12x1.5 | 17 | 28 | 10 | alama |
|
Adauga | |
| 21SFAD12MXN | M12x1.5 | 17 | 28 | 10 | alama nichelata |
|
Adauga | |
| 21SFAD14MXX | M14x1.5 | 17 | 28 | 10 | alama |
|
Adauga | |
| 21SFAD14MXN | M14x1.5 | 17 | 28 | 10 | alama nichelata |
|
Adauga |
