Cupla rapida mama, seria 21, filet interior
Tip produs: 21KBI
Profil standard European
Seria 21, Diametru nominal DN 5
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C

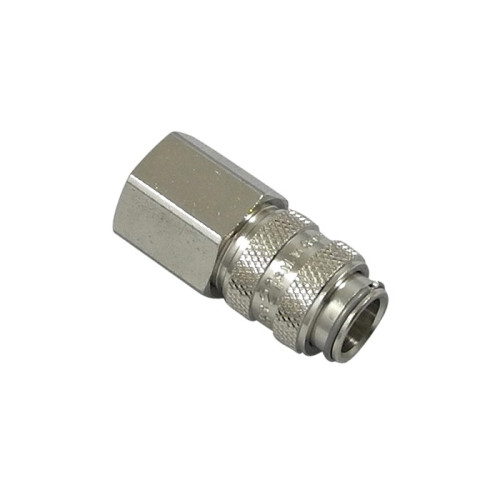

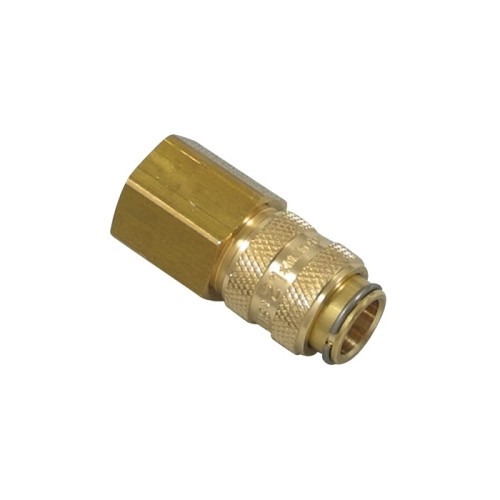

Cupla rapida mama, seria 21, alama sau alama nichelata, cu filet interior si supapa pentru inchidere dubla.

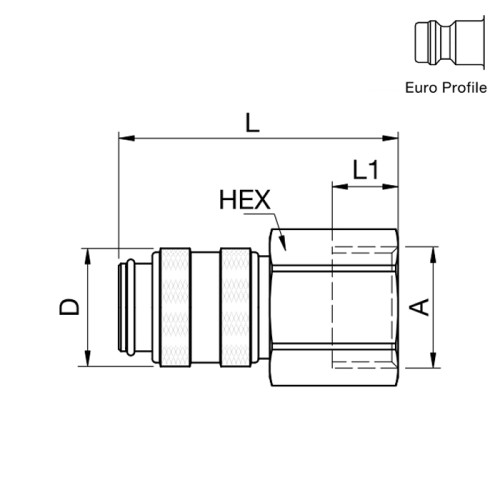

| Cod | Cod Legris | A | HEX mm | L mm | L1 mm | ØD mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 21KBIW10MPX | G1/8 | 14 | 36 | 9 | 16 | alama |
|
Adauga | |
| 21KBIW10MPN | 9214 21 10 | G1/8 | 14 | 36 | 9 | 16 | alama nichelata |
|
Adauga |
| 21KBIW13MPX | G1/4 | 17 | 38 | 9 | 16 | alama |
|
Adauga | |
| 21KBIW13MPN | 9214 21 13 | G1/4 | 17 | 38 | 9 | 16 | alama nichelata |
|
Adauga |
| 21KBIW17MPX | G3/8 | 19 | 38 | 9 | 16 | alama |
|
Adauga | |
| 21KBIW17MPN | G3/8 | 19 | 38 | 9 | 16 | alama nichelata |
|
Adauga | |
| 21KBIM12MPX | M12x1.5 | 17 | 38 | 6 | 16 | alama |
|
Adauga | |
| 21KBIM12MPN | M12x1.5 | 17 | 38 | 6 | 16 | alama nichelata |
|
Adauga | |
| 21KBIM14MPX | M14x1.5 | 17 | 38 | 6 | 16 | alama |
|
Adauga | |
| 21KBIM14MPN | M14x1.5 | 17 | 38 | 6 | 16 | alama nichelata |
|
Adauga |
