Cupla rapida mama, seria 21, cu stut
Tip produs: 21KBTF
Profil standard European
Seria 21, Diametru nominal DN 5
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C

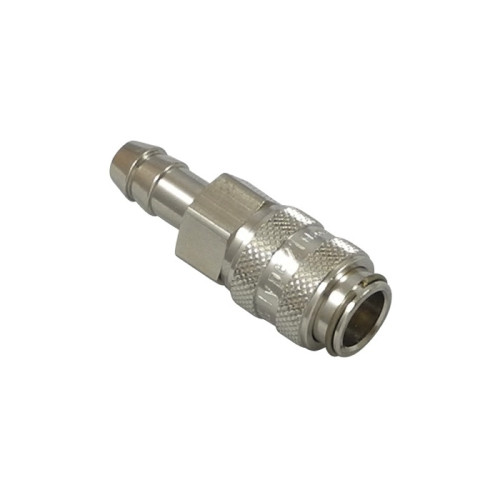

Cupla rapida mama, seria 21, alama sau alama nichelata, cu stut pentru furtun si supapa pentru inchidere dubla.

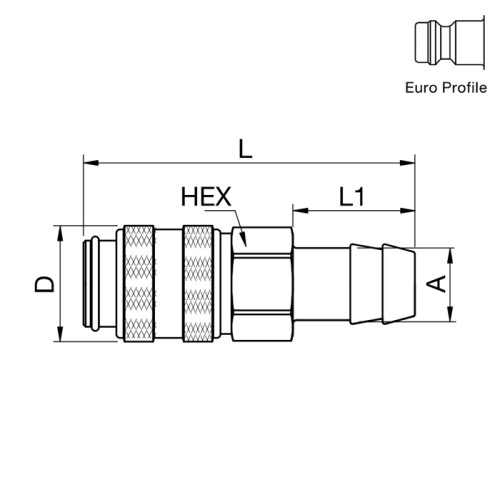

| Cod | Cod Legris | A | HEX mm | L mm | L1 mm | ØD mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 21KBTF04MPX | 4 | 14 | 46 | 17 | 16 | alama |
|
Adauga | |
| 21KBTF04MPN | 9223 21 04 | 4 | 14 | 46 | 17 | 16 | alama nichelata |
|
Adauga |
| 21KBTF05MPX | 5 | 14 | 46 | 17 | 16 | alama |
|
Adauga | |
| 21KBTF05MPN | 5 | 14 | 46 | 17 | 16 | alama nichelata |
|
Adauga | |
| 21KBTF06MPX | 6 | 14 | 46 | 17 | 16 | alama |
|
Adauga | |
| 21KBTF06MPN | 9223 21 06 | 6 | 14 | 46 | 17 | 16 | alama nichelata |
|
Adauga |
| 21KBTF08MPX | 8 | 14 | 46 | 17 | 16 | alama |
|
Adauga | |
| 21KBTF08MPN | 9223 21 08 | 8 | 14 | 46 | 17 | 16 | alama nichelata |
|
Adauga |
| 21KBTF09MPX | 9 | 14 | 46 | 17 | 16 | alama |
|
Adauga | |
| 21KBTF09MPN | 9 | 14 | 46 | 17 | 16 | alama nichelata |
|
Adauga | |
| 21KBTF10MPX | 10 | 14 | 46 | 17 | 16 | alama |
|
Adauga | |
| 21KBTF10MPN | 10 | 14 | 46 | 17 | 16 | alama nichelata |
|
Adauga |
