Cupla rapida mama, seria 21, filet interior
Tip produs: 21KAI
Profil standard European
Seria 21, Diametru nominal DN 5
single shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C

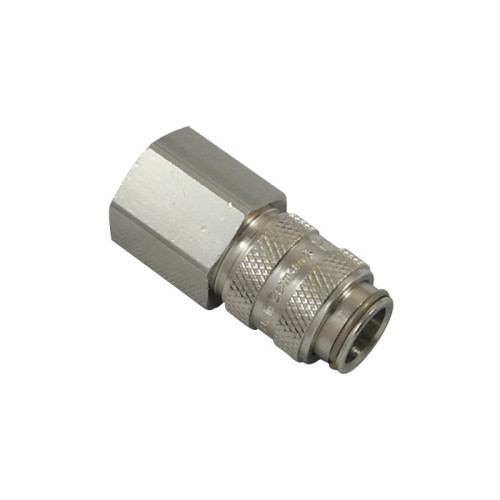

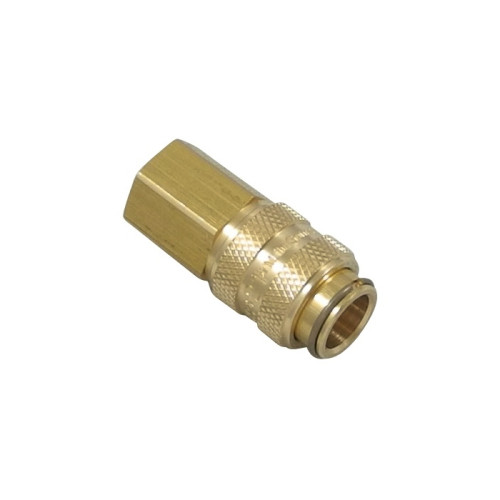

Cupla rapida mama, seria 21, alama sau alama nichelata, cu filet interior si supapa pentru inchidere simpla.

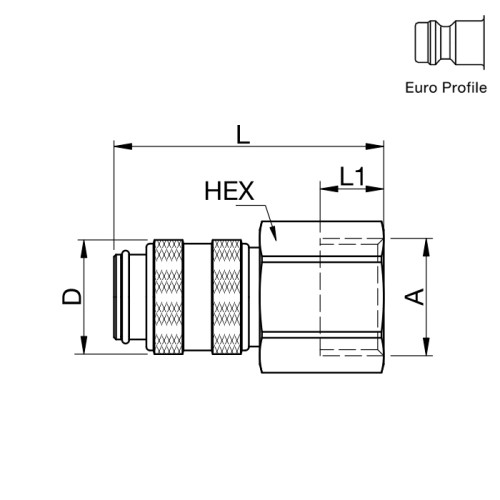

| Cod | A | HEX mm | L mm | L1 mm | ØD mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 21KAIW10MPX | G1/8 | 14 | 36 | 7 | 16 | alama |
|
Adauga |
| 21KAIW10MPN | G1/8 | 14 | 36 | 7 | 16 | alama nichelata |
|
Adauga |
| 21KAIW13MPX | G1/4 | 17 | 38 | 9 | 16 | alama |
|
Adauga |
| 21KAIW13MPN | G1/4 | 17 | 38 | 9 | 16 | alama nichelata |
|
Adauga |
| 21KAIW17MPX | G3/8 | 19 | 38 | 9 | 16 | alama |
|
Adauga |
| 21KAIW17MPN | G3/8 | 19 | 38 | 9 | 16 | alama nichelata |
|
Adauga |
| 21KAIM12MPX | M12x1.5 | 17 | 38 | 6 | 16 | alama |
|
Adauga |
| 21KAIM12MPN | M12x1.5 | 17 | 38 | 6 | 16 | alama nichelata |
|
Adauga |
| 21KAIM14MPX | M14x1.5 | 17 | 38 | 6 | 16 | alama |
|
Adauga |
| 21KAIM14MPN | M14x1.5 | 17 | 38 | 6 | 16 | alama nichelata |
|
Adauga |
