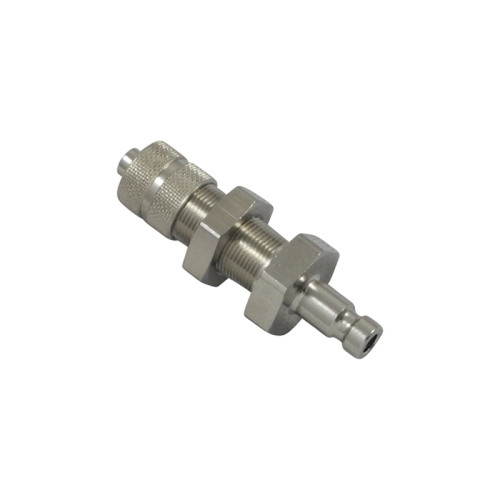

Cupla rapida tata, seria 20, de panou, cu racord cu strangere
Tip produs: 20SFKS
Profil standard European
Seria 20, Diametru nominal DN 2,7
single shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C
Cupla rapida tata, seria 20, alama sau alama nichelata, cu piulita de montare pe panou si racord cu strangere pe con cu piulita randalinata

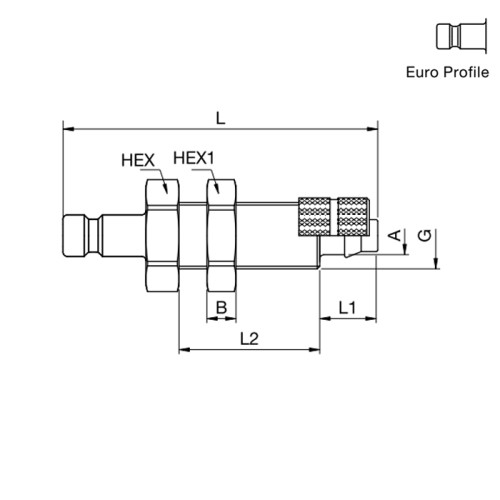

| Cod | A | HEX mm | HEX1 mm | B | G | L mm | L1 mm | L2 mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20SFKS04MXX | 3x4 | 11 | 11 | 3 | M7x0,5 | 38 | 7 | 17 | alama |
|
Adauga |
| 20SFKS04MXN | 3x4 | 11 | 11 | 3 | M7x0,5 | 38 | 7 | 17 | alama nichelata |
|
Adauga |
| 20SFKS05MXX | 3x5 | 11 | 11 | 3 | M7x0,5 | 38 | 7 | 17 | alama |
|
Adauga |
| 20SFKS05MXN | 3x5 | 11 | 11 | 3 | M7x0,5 | 38 | 7 | 17 | alama nichelata |
|
Adauga |
| 20SFKS06MXX | 4x6 | 12 | 12 | 3 | M8x0,5 | 38 | 7 | 17 | alama |
|
Adauga |
| 20SFKS06MXN | 4x6 | 12 | 12 | 3 | M8x0,5 | 38 | 7 | 17 | alama nichelata |
|
Adauga |
