Cupla rapida mama, seria 20, cu racord rapid

Cupla rapida mama, seria 20, cu racord rapid

Tip produs: 20KBRP

Profil standard European
Seria 20, Diametru nominal DN 2,7

double shut-off

Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C

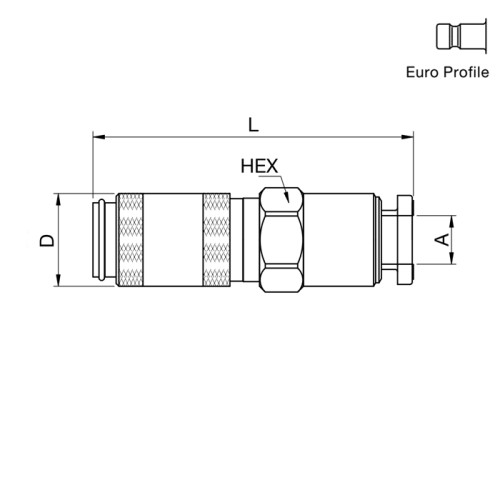

Cupla rapida mama, seria 20, alama nichelata, cu racord rapid push-in si supapa pentru inchidere dubla.

Informatii de la producator

Selectati codul produsului:

Quick Coupling, European Profile, ND 2.7 (Series 20)

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

PART NUMBER: 20KBRP04MPN Connection Size: 4 mm Connection Thread Size: n/a Connection Type: Push-In Coupling Half: Coupler External Hex (mm): 10 Hose I.D.: 4 mm Materials of Construction: Brass, Nickel-plated Type: Coupling Version: Double Shut-Off

Parker’s Series 20 is a mini-industrial coupling with European profile. Coupling system with single-hand operation. High flow rate despite small dimensions.

Markets:
- Industrial
- Life Sciences
- Medical technology
- Chemistry pharmacybr/>- Electronics and energy management
- Transportation
- Machinery construction
- Automotive
- Process

Features/Benefits:
- Mini Industrial coupling
- Single hand operation for easy and fast connection
- European profile is the most representative profile worldwide

Brand	Parker
Brand	Rectus
Division	Low Pressure Connectors Europe Division
Industry	General Industrial
Industry	Healthcare & Life Sciences
Application	Food & Beverages
Application	Industrial Machinery
Application	Medical
Application	Pharma
Technology	Fluid & Gas Handling
Product Type	Pneumatic Quick Couplings
Product Style	Quick-Connect
Product Series	Series 20
Maximum Operating Pressure	up to 35 bar
Maximum Operating Pressure	up to 507 psi
Connection Type	Push-In
Connection Size	4 mm
Maximum Operating Temperature	100 °C
Maximum Operating Temperature	212 °F
Minimum Operating Temperature	-20 °C
Minimum Operating Temperature	-4 °F
For Fluid Type	Water
For Fluid Type	Inert Gas
For Fluid Type	Chemical Fluids
For Fluid Type	Gases
Flow Rate	1.2 L/min (water)
Body Material	Brass
Seal Material	NBR
Sleeve Material	Brass
Interchange Type	European Profile
Coupling Half	Coupler
Compatible Fitting	Series 20 Plug
Valve Type	Standard Valve
Function	Double Shut-Off
Operation Type	Sleeve
Plating Type	Nickel-plated
Diameter	2.7 mm (nominal)
Hex Size	10 mm (external)
Hex Size	10 mm
Specifications Met	ATEX
Specifications Met	RoHS
Weight	0.0119 kg
Length	17 to 52.5 mm
Quantity per Box	5
Region of Origin	Germany
Version	Double Shut-Off
Shape	Straight
Valve Included	Yes
