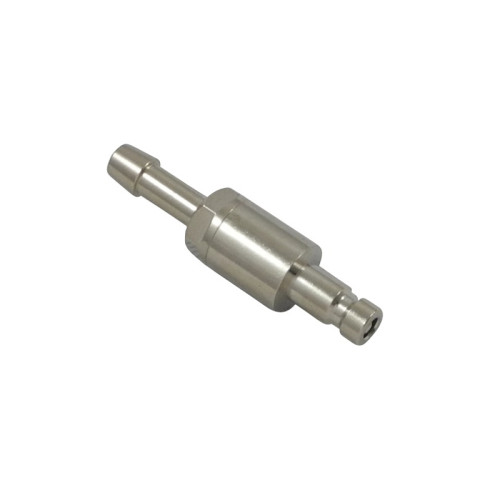

Cupla rapida tata, seria 20, cu stut
Tip produs: 20SBTF
Profil standard European
Seria 20, Diametru nominal DN 2,7
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C
Cupla rapida tata, seria 20, alama sau alama nichelata, cu stut pentru furtun si supapa pentru inchidere dubla

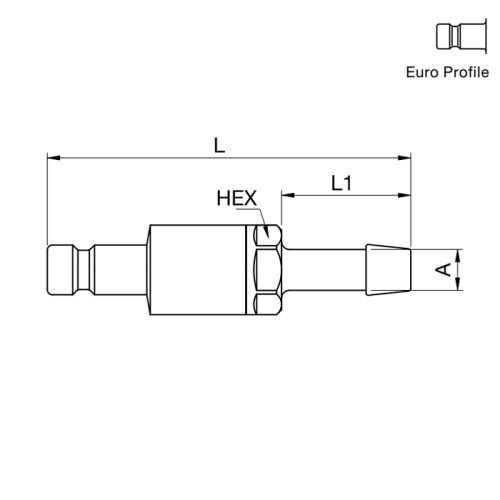

| Cod | Cod Legris | A | HEX mm | L mm | L1 mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 20SBTF03MPX | 3 | 8 | 36 | 13 | alama |
|
Adauga | |
| 20SBTF03MPN | 9285 20 03 | 3 | 8 | 36 | 13 | alama nichelata |
|
Adauga |
| 20SBTF04MPX | 4 | 8 | 36 | 13 | alama |
|
Adauga | |
| 20SBTF04MPN | 9285 20 04 | 4 | 8 | 36 | 13 | alama nichelata |
|
Adauga |
| 20SBTF05MPX | 5 | 8 | 36 | 13 | alama |
|
Adauga | |
| 20SBTF05MPN | 9285 20 05 | 5 | 8 | 36 | 13 | alama nichelata |
|
Adauga |
