Cupla rapida mama, seria 26, filet exterior
Tip produs: 26KBA
Profil standard industrial European
Seria 26, Diametru nominal DN 7,2
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C
Cupla rapida mama, seria 26, alama / alama nichelata, cu filet exterior si supapa pentru inchidere dubla.
Cuple tata compatibile: seria 25, seria 26

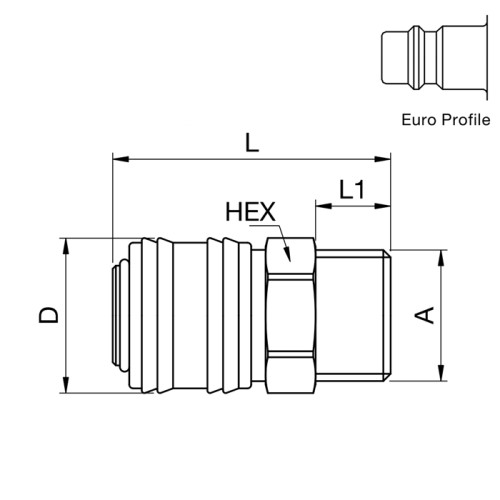

| Cod | A | HEX mm | L mm | L1 mm | ØD mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|
| 26KBAW10MPX | G1/8 | 22 | 43 | 9 | 25 |
|
Adauga |
| 26KBAW13MPX | G1/4 | 22 | 39 | 9 | 25 |
|
Adauga |
| 26KBAW17MPX | G3/8 | 22 | 41 | 9 | 25 |
|
Adauga |
| 26KBAW21MPX | G1/2 | 24 | 44 | 10 | 25 |
|
Adauga |
| 26KBAD14MPX | M14x1.5 | 22 | 43 | 10 | 25 |
|
Adauga |
| 26KBAD16MPX | M16x1.5 | 22 | 43 | 11 | 25 |
|
Adauga |
| 26KBAD18MPX | M18x1.5 | 22 | 43 | 11 | 25 |
|
Adauga |
