Cupla rapida mama, seria 26, filet exterior
Tip produs: 26KAA
Profil standard industrial European
Seria 26, Diametru nominal DN 7,2
single shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C

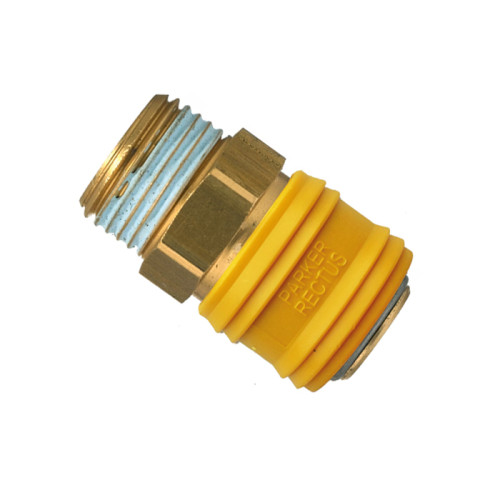

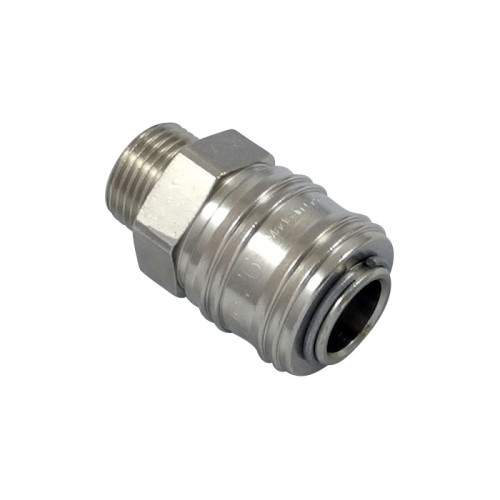

Cupla rapida mama, seria 26, alama / alama nichelata, cu filet exterior si supapa pentru inchidere simpla.
Cuple tata compatibile: seria 25, seria 26

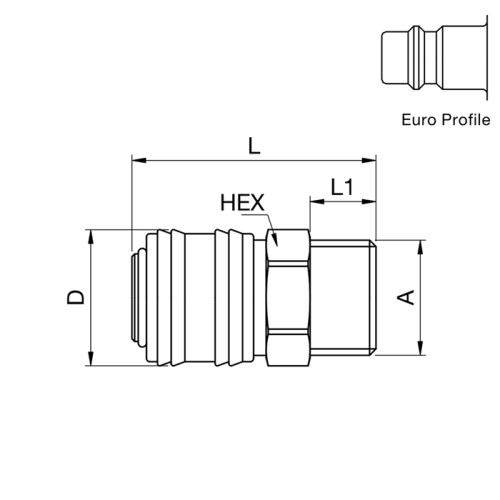

| Cod | Cod Legris | A | HEX mm | ØD mm | L mm | L1 mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 26KAAW10MPX | G1/8 | 22 | 25 | 43 | 9 | alama |
|
Adauga | |
| 26KAAW10MPN | 9101 26 10 | G1/8 | 22 | 25 | 43 | 9 | alama nichelata |
|
Adauga |
| 26KAAW13MPX | G1/4 | 22 | 25 | 39 | 9 | alama |
|
Adauga | |
| 26KAAW13MPN | 9101 26 13 | G1/4 | 22 | 25 | 39 | 9 | alama nichelata |
|
Adauga |
| 26KAAW17MPX | G3/8 | 22 | 25 | 41 | 9 | alama |
|
Adauga | |
| 26KAAW17MPN | 9101 26 17 | G3/8 | 22 | 25 | 41 | 9 | alama nichelata |
|
Adauga |
| 26KAAW21MPX | G1/2 | 22 | 25 | 44 | 12 | alama |
|
Adauga | |
| 26KAAW21MPN | 9101 26 21 | G1/2 | 22 | 25 | 44 | 12 | alama nichelata |
|
Adauga |
| 26KAAW21MPXS_36 | G1/2 | 24 | 25 | 44 | 12 | alama |
|
Adauga | |
| 26KAAD14MPX | M14x1.5 | 22 | 25 | 43 | 10 | alama |
|
Adauga | |
| 26KAAD16MPX | M16x1.5 | 22 | 25 | 43 | 11 | alama |
|
Adauga | |
| 26KAAD18MPX | M18x1.5 | 22 | 25 | 43 | 11 | alama |
|
Adauga |
