Cupla rapida mama, seria 26, cu stut
Tip produs: 26KAT
Profil standard industrial European
Seria 26, Diametru nominal DN 7,2
single shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C

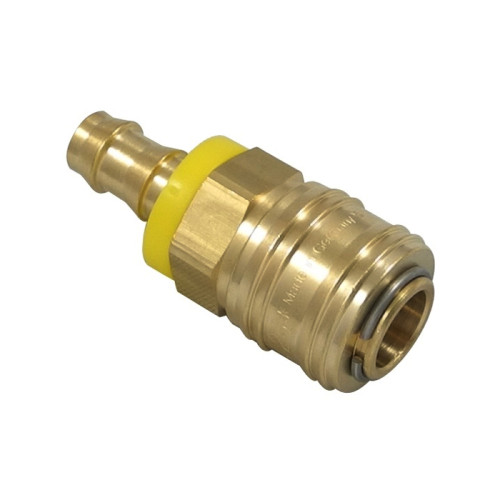

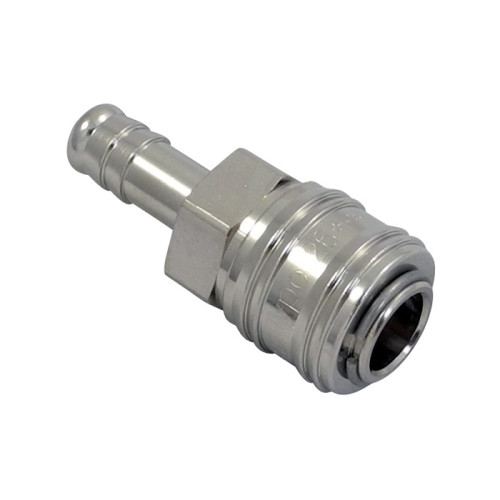

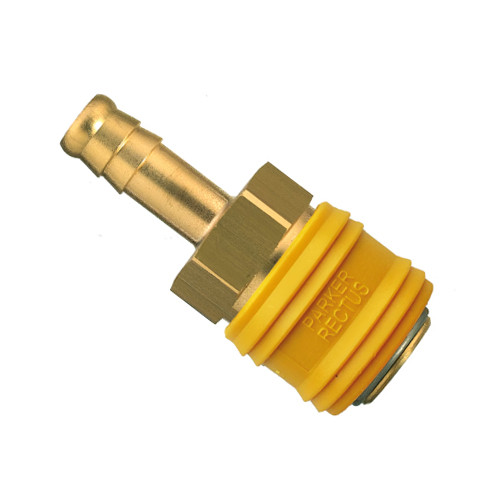

Cupla rapida mama, seria 26, alama / alama si polimer / alama nichelata, cu stut pentru furtun si supapa pentru inchidere simpla.
Cuple tata compatibile: seria 25, seria 26

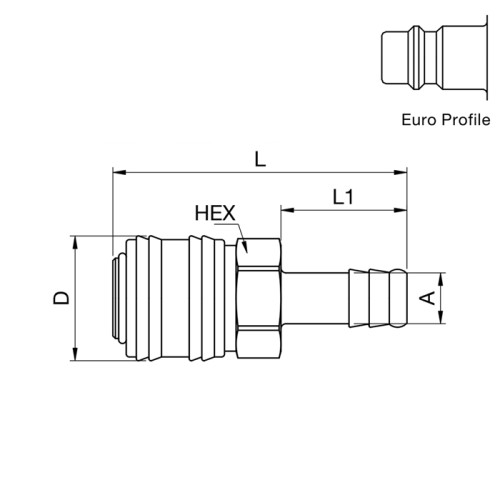

| Cod | A | HEX mm | L mm | L1 mm | ØD mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 26KATF06MPX | 6 | 21 | 58 | 25 | 25 | alama |
|
Adauga |
| 26KATF06MPXY | 6 | 21 | 58 | 25 | 25 | alama + ploimer |
|
Adauga |
| 26KATF06MPN | 6 | 21 | 58 | 25 | 25 | alama nichelata |
|
Adauga |
| 26KATF08MPX | 8 | 21 | 58 | 25 | 25 | alama |
|
Adauga |
| 26KATF08MPXY | 8 | 21 | 58 | 25 | 25 | alama + ploimer |
|
Adauga |
| 26KATF08MPN | 8 | 21 | 58 | 25 | 25 | alama nichelata |
|
Adauga |
| 26KATF09MPX | 9 | 21 | 58 | 25 | 25 | alama |
|
Adauga |
| 26KATF09MPXY | 9 | 21 | 58 | 25 | 25 | alama + ploimer |
|
Adauga |
| 26KATF09MPN | 9 | 21 | 58 | 25 | 25 | alama nichelata |
|
Adauga |
| 26KATF10MPX | 10 | 21 | 58 | 25 | 25 | alama |
|
Adauga |
| 26KATF10MPXY | 10 | 21 | 58 | 25 | 25 | alama + ploimer |
|
Adauga |
| 26KATF10MPN | 10 | 21 | 58 | 25 | 25 | alama nichelata |
|
Adauga |
| 26KATF13MPX | 13 | 21 | 58 | 25 | 25 | alama |
|
Adauga |
| 26KATF13MPXY | 13 | 21 | 58 | 25 | 25 | alama + ploimer |
|
Adauga |
| 26KATF13MPN | 13 | 21 | 58 | 25 | 25 | alama nichelata |
|
Adauga |
| 26KATP06MPX | 6 Push-Lok | 21 | 58 | 20,5 | 25 | alama |
|
Adauga |
| 26KATP10MPX | 10 Push-Lok | 21 | 58 | 24 | 25 | alama |
|
Adauga |
| 26KATP13MPX | 13 Push-Lok | 21 | 58 | 28 | 25 | alama |
|
Adauga |
