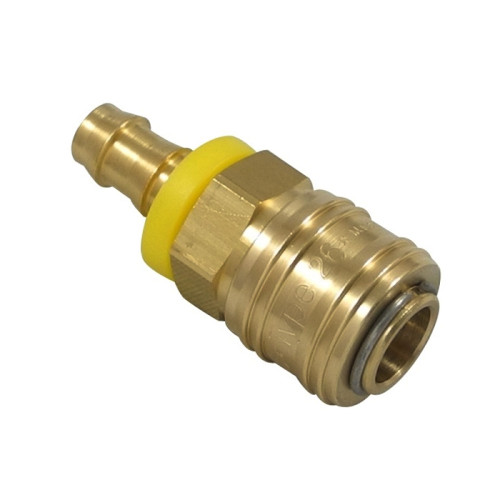

Cupla rapida mama, seria 26, cu stut
Tip produs: 26KBT
Profil standard industrial European
Seria 26, Diametru nominal DN 7,2
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C
Cupla rapida mama, seria 26, alama / alama nichelata, cu stut pentru furtun si supapa pentru inchidere dubla.
Cuple tata compatibile: seria 25, seria 26

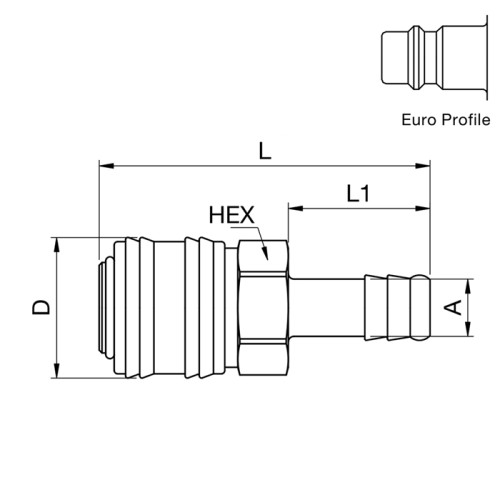

| Cod | A | HEX mm | L mm | L1 mm | ØD mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|
| 26KBTF06MPX | 6 | 21 | 58 | 25 | 25 |
|
Adauga |
| 26KBTF08MPX | 8 | 21 | 58 | 25 | 25 |
|
Adauga |
| 26KBTF09MPX | 9 | 21 | 58 | 25 | 25 |
|
Adauga |
| 26KBTF10MPX | 10 | 21 | 58 | 25 | 25 |
|
Adauga |
| 26KBTF13MPX | 13 | 21 | 58 | 25 | 25 |
|
Adauga |
| 26KBTP06MPX | 6 Push-Lok | 21 | 58 | 20,5 | 25 |
|
Adauga |
| 26KBTP10MPX | 10 Push-Lok | 21 | 58 | 24 | 25 |
|
Adauga |
| 26KBTP13MPX | 13 Push-Lok | 21 | 58 | 28 | 25 |
|
Adauga |
